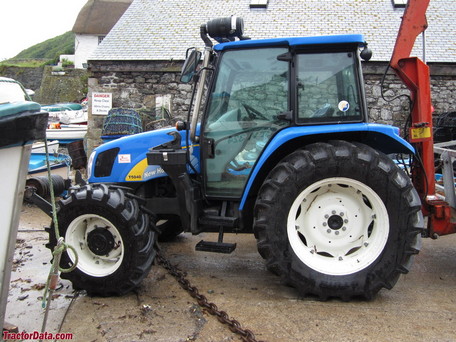

New Holland TL5040

Production: 2007 - 2011

Production
Manufacturer:	New Holland
Type:	Utility tractor
Factory:	Shanghai, China

New Holland TL5040 Power
Engine:	80 hp 59.7 kW
PTO (claimed):	70 hp 52.2 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD (optional)
Steering:	hydrostatic power
Brakes:	hydraulic wet disc
Cab:	Open operator station. Optional ROPS. Optional cab with heat and air-conditioning.
Transmission:	12-speed

Hydraulics
Valves:	1 to 3
Pump flow:	11.9 gpm 45.0 lpm

Tractor hitch
Rear Type:	II
Rear lift (at ends):	7,368 lbs 3342 kg
Rear lift (at 24"/610mm):	4,497 lbs 2039 kg

Power Take-off (PTO)
Rear RPM:	540
Engine RPM:	540@2199

Electrical
Ground:	negative
Battery volts:	12
Battery AH:	120

Engine Detail
Weifang-Deutz TD 226B-4
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	253.6 ci 4.2 L
Bore/Stroke:	4.134x4.724 inches 105 x 120 mm
Emissions:	Tier 1
Power:	80 hp 59.7 kW
Fuel system:	mechanical pump
Air cleaner:	dry element
Rated RPM:	2500
Torque:	211.7 lb-ft 287.1 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12

Transmission
Transmission:	Synchro Command
Gears:	12 forward and 4 reverse
Clutch:	dual 305mm disc

Dimensions
2WD Wheelbase:	96 inches 243 cm
4WD Wheelbase:	94.9 inches 241 cm
Length:	154.1 inches 391 cm
Height (exhaust):	100 inches 254 cm
2WD Clearance (front axle):	18.9 inches 48 cm
4WD Clearance (front axle):	17.7 inches 44 cm
