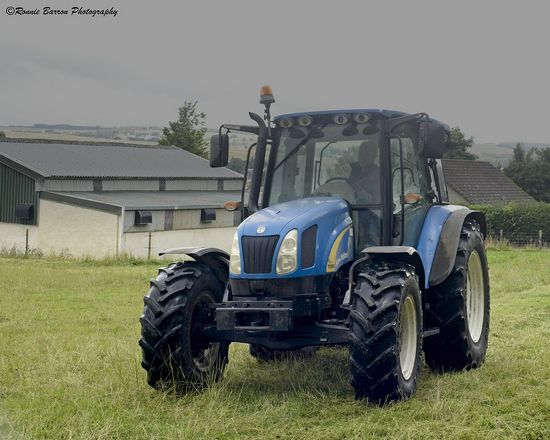

New Holland T5060
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | New Holland |
| Type: | Utility tractor |
| Factory: | Jesi, Italy |
New Holland T5060 Power | |
| Engine (gross): | 105 hp 78.3 kW |
| PTO (claimed): | 90 hp 67.1 kW |
| Drawbar (tested): | 76.6 hp 57.1 kW |
| PTO (tested): | 94.4 hp 70.4 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Differential lock: | mechanical rear standard |
| optional electrohydraulic front and rear | |
| Steering: | hydrostatic power |
| Brakes: | hydraulic wet disc |
| Cab: | Flat deck platform with ROPS. Cab optional with heat and air-conditioning. |
| Transmissions: | 12-speed mechanical shuttle |
| 12-speed power shuttle | |
| 20-speed mechanical shuttle | |
| 24-speed power shuttle | |
Hydraulics | |
| Type: | open center |
| Pressure: | 2,871 psi 198.0 bar |
| Rear valves: | 2 to 3 (open or closed center) |
| Mid valves: | 0 to 2 |
| Pump flow: | 16.1 gpm 60.9 lpm |
| Steering flow: | 10.4 gpm 39.4 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | mechanical lower-link draft sensing |
| Rear lift (at 24"/610mm): | 5,475 lbs 2483 kg |
| 6,805 lbs 3086 kg (optional) | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | mechanical |
| electrohydraulic optional | |
| Rear RPM: | 540/1000 (1.375) |
| Engine RPM: | 540@2199 1000@2261 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 120 |
| Battery CCA: | 960 |
| Battery volts: | 12 |
Engine Detail | |
| New Holland | |
| turbocharged intercooled diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 274 ci 4.5 L |
| Emissions: | Tier III |
| Power (gross): | 105 hp 78.3 kW |
| Air cleaner: | dual dry element |
| Pre-heating: | grid heater |
| Rated RPM: | 2300 |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 92.5 inches 234 cm |
| Length: | 92.2 inches 234 cm (2WD) |
| 92.5 inches 234 cm (4WD) | |
| Height (ROPS): | 108.9 inches 276 cm |
| Height (cab): | 100.8 inches 256 cm |
| Rear axle: | Flange: 69.7 inch length 1770 mm |
| Front tread: | 58.8 to 82.4 inches 149 to 209 cm (2WD) |
| Front tread: | 68.9 to 84.7 inches 175 to 215 cm (4WD) |
