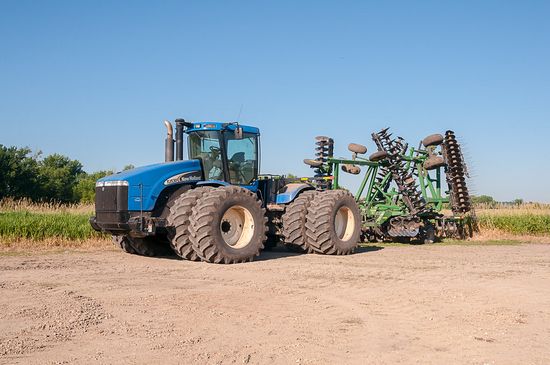

New Holland TJ530

Production: 2006 - 2007

Production
Manufacturer:	New Holland
Factory:	Fargo, North Dakota, USA

New Holland TJ530 Power
Engine:	530 hp 395.2 kW
PTO (claimed):	530 hp 395.2 kW

Mechanical
Chassis:	4x4 articulated 4WD
Steering:	hydrostatic power
Brakes:	integral hydraulic wet disc
Cab:	Cab standard with heat and air-conditioning
Transmission:	16-speed full power shift

Hydraulics
Type:	closed center load sensing (CCLS)
Pressure:	2000 psi 137.9 bar
Valves:	4 to 9
Pump flow:	33 gpm 124.9 lpm
Total flow:	42 gpm 159.0 lpm
57 gpm 215.7 lpm (optional)
94 gpm 355.8 lpm (optional MegaFlow)

Tractor hitch
Rear Type:	IVN (optional)
Rear lift (at 24"/610mm):	19,620 lbs 8899 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	1000 (optional)

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	150
175 (optional)
Batteries:	2
Battery volts:	12
Battery AH:	1000

Engine Detail
Cummins QSX15
turbocharged aftercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement:	912 ci 14.9 L
Bore/Stroke:	5.394x6.654 inches 137 x 169 mm
Power:	530 hp 395.2 kW
Maximum Power:	584 hp 435.5 kW
Compression:	17.0:1
Rated RPM:	2000
Torque:	1873 lb-ft 2539.8 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	24
Oil capacity:	52 qts 49.2 L
Coolant capacity:	84.4 qts 79.9 L

Transmission
Type:	full power shift
Gears:	16 forward and 2 reverse

Dimensions
Wheelbase:	154 inches 391 cm
Length:	298 inches 756 cm
Height:	150 inches 381 cm
Max weight:	54,000 lbs 24494 kg
