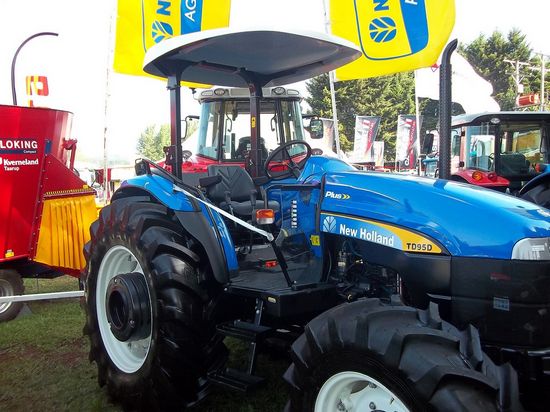

New Holland TD95D
Type: Utility Tractors
Contents:
Production | |
| Distributor: | New Holland |
| Manufacturer: | Turk Traktor |
| Type: | Utility tractor |
| Factory: | Ankara, Turkey |
New Holland TD95D Power | |
| Engine: | 90 hp 67.1 kW |
| PTO (claimed): | 80 hp 59.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Steering: | hydrostatic power |
| Brakes: | mechanical wet disc |
| Cab: | Two-post foldable ROPS. Cab with heat and air-conditioning optional. |
| Transmissions: | 12-speed mechanical shuttle |
| 20-speed mechanical shuttle with creeper | |
Hydraulics | |
| Type: | open center |
| Pressure: | 2755 psi 190.0 bar |
| Valves: | 1 to 3 |
| Pump flow: | 13.6 gpm 51.5 lpm |
| Total flow: | 21.7 gpm 82.1 lpm |
| Steering flow: | 8.1 gpm 30.7 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | mechanical draft control |
| Rear lift (at 24"/610mm): | 5,025 lbs 2279 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | mechanical dry |
| Rear RPM: | 540 (1.375) |
| 540/1000 (1.375 optional) | |
Electrical | |
| Ground: | negative |
| Charging amps: | 65 |
| Battery CCA: | 800 |
| Battery volts: | 12 |
Engine Detail | |
| Iveco 8045.25 | |
| turbocharged diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 238 ci 3.9 L |
| Bore/Stroke: | 4.094x4.528 inches 104 x 115 mm |
| Power: | 90 hp 67.1 kW |
| Fuel system: | Bosch injection pump |
| Air cleaner: | dual dry elements |
| Pre-heating: | thermostart |
| block heater optional | |
| Rated RPM: | 2500 |
| Torque: | 250.8 lb-ft 340.1 Nm |
| Torque RPM: | 1500 |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 94 inches 238 cm (2WD) |
| 92 inches 233 cm (4WD) | |
| Height: | 103.1 inches 261 cm |
| 2WD Front tread: | 55.5 to 75.2 inches 140 to 191 cm |
| 4WD Front tread: | 56.9 to 73.8 inches 144 to 187 cm |
| Rear tread: | 55.1 to 78.8 inches 139 to 200 cm |
