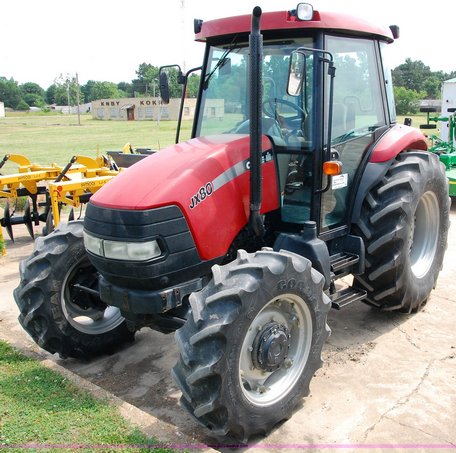

Case IH JX80

Production: 2007 - 2008

Production
Distributor:	Case IH
Manufacturer:	Turk Tractor
Type:	Utility tractor
Factory:	Ankara, Turkey

Case IH JX80 Power
Engine (gross):	72 hp 53.7 kW
PTO (claimed):	62 hp 46.2 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	hydrostatic power
Brakes:	hydraulic wet disc (USA)
mechanical wet disc
Cab:	Two-post folding ROPS. Cab optional with air-conditioning.
Transmissions:	12-speed mechanical shuttle
20-speed mechanical shuttle with creeper

Hydraulics
Type:	open center
Pressure:	2755 psi 190.0 bar
Valves:	1 to 3, 1 mid optional
Pump flow:	10.6 gpm 40.1 lpm
13.6 gpm 51.5 lpm (optional, standard in USA)
Total flow:	21.7 gpm 82.1 lpm
Steering flow:	8.1 gpm 30.7 lpm

Tractor hitch
Rear Type:	II/I
Control:	mechanical draft sensing
Rear lift (at 24"/610mm):	5,025 lbs 2279 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	mechanical dry disc
Rear RPM:	540
540/540E
540/1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	85
Battery volts:	12

Engine Detail
Iveco
diesel
4-cylinder
liquid-cooled
Displacement:	238.5 ci 3.9 L
Bore/Stroke:	4.094x4.528 inches 104 x 115 mm
Power (gross):	72 hp 53.7 kW
Fuel system:	direct injection with mechanical governor
Air cleaner:	dual dry elements
Rated RPM:	2500
Torque:	205.8 lb-ft 279.1 Nm
Torque RPM:	1500
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	91 inches 231 cm (2WD)
87 inches 220 cm (4WD)
Length:	158.7 inches 403 cm (2WD)
156.5 inches 397 cm (4WD)
Width:	71.2 inches 180 cm
Height (ROPS):	101.1 inches 256 cm
Height (cab):	103.1 inches 261 cm
