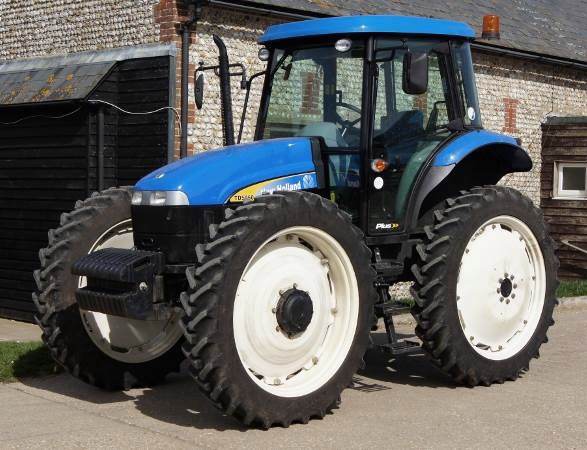

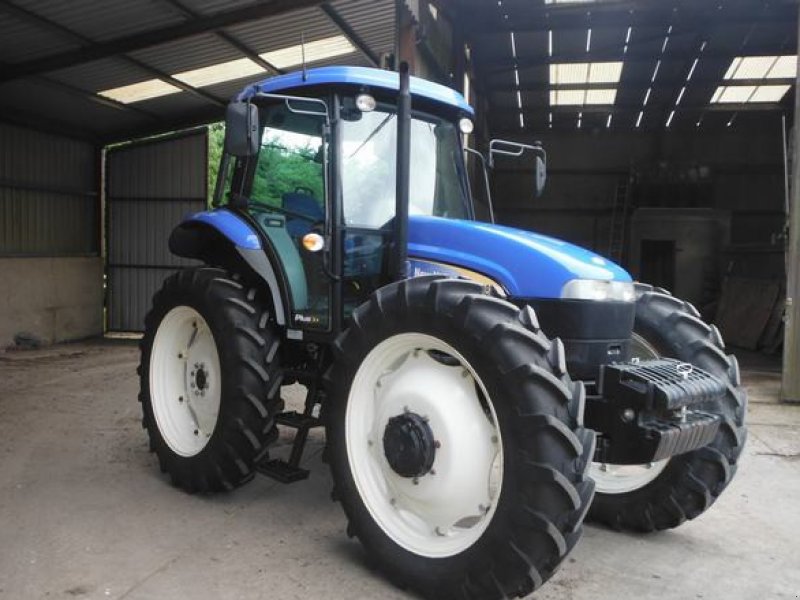

New Holland TD5050HC High-Clearance

Production: 2009

Production
Manufacturer:	New Holland
Type:	High-Clearance tractor

Variants

regular chassis

high-clearance

New Holland TD5050HC Power
Engine (gross):	90 hp 67.1 kW
PTO (claimed):	80 hp 59.7 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD (optional)
Cab:	Platform with ROPS.
Transmission:	20-speed mechanical shuttle

Hydraulics
Type:	open center
Pressure:	2,755 psi 190.0 bar
Valves:	1 to 3 rear
Pump flow:	16.1 gpm 60.9 lpm
Total flow:	23.1 gpm 87.4 lpm
Steering flow:	7 gpm 26.5 lpm

Tractor hitch
Rear Type:	II
Rear lift (at 24"/610mm):	5,025 lbs 2279 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540
540/1000 (optional)

Electrical
Charging system:	alternator
Charging amps:	120
Battery CCA:	800
Battery volts:	12

Engine Detail
Iveco NEF
turbocharged intercooled diesel
4-cylinder
liquid-cooled
Displacement:	274 ci 4.5 L
Power (gross):	90 hp 67.1 kW
Air cleaner:	dual dry element
Rated RPM:	2500
Torque:	346 lb-ft 469.2 Nm
Torque RPM:	1500
Starter volts:	12

Transmission
Type:	mechanical shuttle
Gears:	20 forward and 12 reverse

Dimensions
Wheelbase:	89.7 inches 227 cm (2WD)
87.5 inches 222 cm (4WD)
85.3 inches 216 cm (2WD wide axle)
83.1 inches 211 cm (4WD wide axle)
Height (ROPS):	115.7 inches 293 cm
Shiping weight:	7,888 lbs 3577 kg (2WD)
8,818 lbs 3999 kg (4WD)
