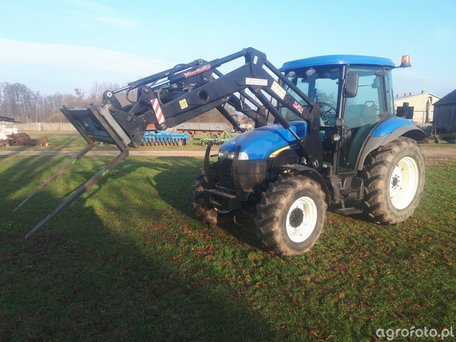

New Holland TD5020
Type: Utility Tractors
Contents:
Production | |
| Distributor: | New Holland |
| Manufacturer: | Turk Tractor |
| Type: | Utility tractor |
| Factory: | Ankara, Turkey |
New Holland TD5020 Power | |
| Engine (gross): | 72 hp 53.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Differential lock: | optional electro-hydraulic rear differential lock, limited slip front differential |
| Steering: | hydrostatic power |
| Cab: | Cab standard with optional air-conditioning. Optional ROPS. |
| Transmissions: | 12-speed |
| 12-speed partially synchronized mechanical shuttle | |
| 20-speed creeper | |
Hydraulics | |
| Rear valves: | 1 to 4 |
| Pump flow: | 11.89 gpm 45.0 lpm |
| 16.11 gpm 61.0 lpm (MegaFlow) | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/540E/ground |
| 540 (optional) | |
| 540/1000 (optional) | |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Battery volts: | 12 |
Engine Detail | |
| FPT F5C | |
| turbocharged intercooled diesel | |
| 4-cylinder 8-valve | |
| liquid-cooled | |
| Displacement: | 195 ci 3.2 L |
| Bore/Stroke: | 3.898x4.094 inches 99 x 104 mm |
| Emissions: | Tier III |
| Rated Power (ECE R120): | 72 hp 53.7 kW |
| Air cleaner: | dry |
| Rated RPM: | 2500 |
| Torque: | 206.5 lb-ft 280.0 Nm |
| Torque RPM: | 1250 |
| Starter: | electric |
| Starter volts: | 12 |
| Oil change: | 600 h |
Dimensions | |
| 2WD Wheelbase: | 89.2 inches 226 cm |
| 4WD Wheelbase: | 87.6 inches 222 cm |
| Length: | 162.4 inches 412 cm |
| Height (ROPS): | 105.7 inches 268 cm |
| Height (cab): | 100.5 inches 255 cm |
| Ground clearance: | 14.6 inches 37 cm |
| 2WD Front tread: | 55.83 to 75.51 inches 141 to 191 cm |
| 4WD Front tread: | 56.89 to 73.82 inches 144 to 187 cm |
| Rear tread: | 56.1 to 75.79 inches 142 to 192 cm |
