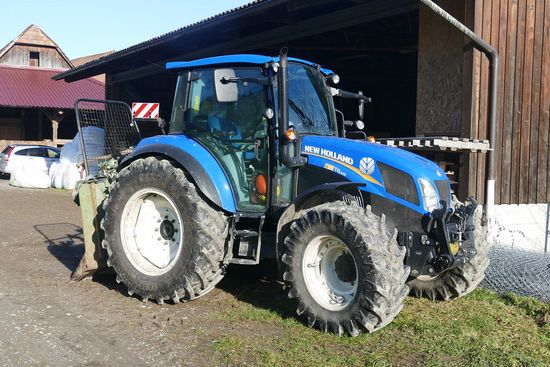

New Holland T4.105
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | New Holland |
| Type: | Utility tractor |
New Holland T4.105 Power | |
| Engine (gross): | 106 hp 79.0 kW |
| PTO (claimed): | 91 hp 67.9 kW |
| Drawbar (tested): | 59.8 hp 44.6 kW |
| PTO (tested): | 94.4 hp 70.4 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Cab: | Two-post ROPS with available FOPS canopy. Optional VisionView Cab with air-conditioning. |
| Transmissions: | 12-speed mechanical shuttle |
| 20-speed mechanical shuttle with creeper | |
| 12-speed power shuttle | |
| 20-speed power shuttle with creeper | |
Hydraulics | |
| Type: | open center |
| Rear valves: | 1 to 3 |
| Pump flow: | 12.5 gpm 47.3 lpm |
| 16.9 gpm 64.0 lpm (optional) | |
| Steering flow: | 7.3 gpm 27.6 lpm |
| 9.7 gpm 36.7 lpm (optional) | |
Tractor hitch | |
| Rear Type: | II |
| Rear lift (at 24"/610mm): | 5620 lbs 2549 kg |
| 7351 lbs 3334 kg (optional) | |
Power Take-off (PTO) | |
| Rear RPM: | 540/1000 |
| 540 | |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| FPT F5D | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 207 ci 3.4 L |
| Bore/Stroke: | 3.898x4.331 inches 99 x 110 mm |
| Emissions: | Tier 4A |
| Emission control: | Cooled Exhaust Gas Recirculation (CEGR) and a Diesel Particulate Filter (DPF) |
| Power (gross): | 106 hp 79.0 kW |
| Fuel system: | common rail fuel injection |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| 2WD Wheelbase: | 90.2 inches 229 cm |
| 4WD Wheelbase: | 87.9 inches 223 cm |
| 4WD Length: | 158 inches 401 cm |
| 2WD Length: | 161 inches 408 cm |
| Width: | 75.7 inches 192 cm |
| Height (ROPS): | 106.5 inches 270 cm |
| Height (cab): | 102.1 inches 259 cm |
