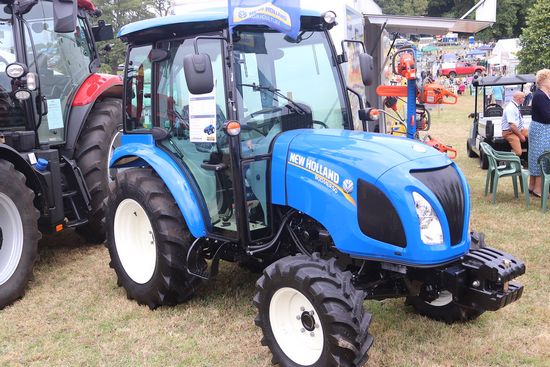

New Holland Boomer 50

Production: 2011 - 2013

Production
Manufacturer:	New Holland
Type:	Compact Utility tractor

New Holland Boomer 50 Power
Engine (gross):	47 hp 35.0 kW
PTO (claimed):	39.4 hp 29.4 kW (gear)
37.1 hp 27.7 kW (hydro)

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	mechanical foot-activated
Steering:	hydrostatic power
Brakes:	differential mechanical wet disc
Cab:	Two-post foldable ROPS.
Transmissions:	16-speed synchronized shuttle
hydrostatic

Hydraulics
Type:	open center
Valves:	0 to 2
Pump flow:	8.2 gpm 31.0 lpm
Total flow:	12.3 gpm 46.6 lpm (gear)
13.7 gpm 51.9 lpm (hydro)
Steering flow:	4.1 gpm 15.5 lpm (gear)
5.5 gpm 20.8 lpm (hydro)

Tractor hitch
Rear Type:	I
Rear lift (at ends):	2756 lbs 1250 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540
Mid PTO:	optional independent
Mid RPM:	2000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	50
Charging volts:	12
Battery CCA:	660
Battery volts:	12
Battery AH:	80

Engine Detail
Mitsubishi S4Q2
diesel
4-cylinder
liquid-cooled
Displacement:	153 ci 2.5 L
Emissions:	Tier 3
Power (gross):	47 hp 35.0 kW
Air cleaner:	dual dry element
Pre-heating:	glow plugs
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	69 inches 175 cm
Length:	121 inches 307 cm
Width:	64 inches 162 cm
Shiping weight:	3,549 lbs 1609 kg
