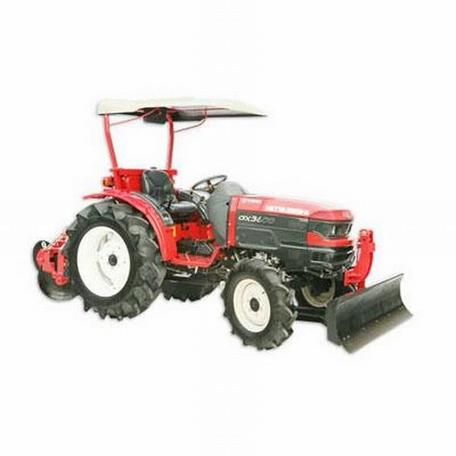

Mitsubishi GX3600

Production: 2009

Production
Manufacturer:	Mitsubishi
Type:	Compact Utility tractor

Mitsubishi GX3600 Power
Engine:	36 hp 26.8 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Open operator station.
Transmission:	8-speed mechanical shuttle

Hydraulics
Pump flow:	7.7 gpm 29.1 lpm
Steering flow:	3.5 gpm 13.2 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	2646 lbs 1200 kg

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540 (1.375)

Electrical
Ground:	negative
Battery volts:	12
Battery AH:	36

Engine Detail
Mitsubishi S3L3L
diesel
3-cylinder
liquid-cooled
Displacement:	101.4 ci 1.7 L
Power:	36 hp 26.8 kW
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Transmission
Type:	mechanical shuttle
Gears:	8 forward and reverse

Dimensions
Wheelbase:	65 inches 165 cm
Length:	109.5 inches 278 cm
Width:	55.5 inches 140 cm
Height (steering wheel):	58.3 inches 148 cm
Weight:	2535 lbs 1149 kg
Ground clearance:	15 inches 38 cm
Front tread:	43.9 inches 111 cm
Rear tread:	42.9 inches 108 cm
