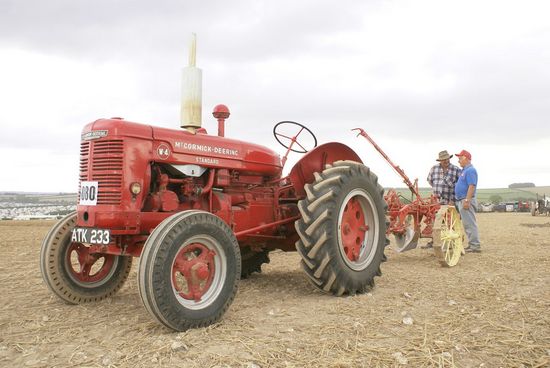

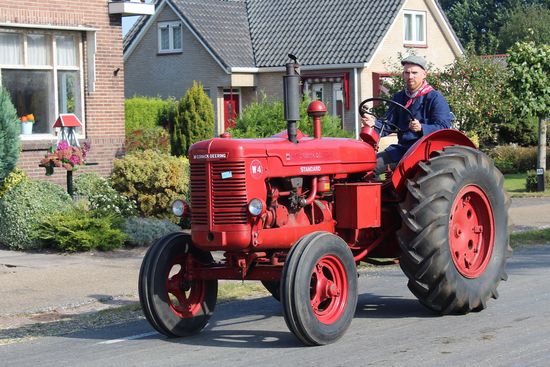

McCormick-Deering W-4
Type: Standard-tread Tractors
Contents:
Production | |
| Manufacturer: | McCormick-Deering (a part of International Harvester) |
| Type: | Standard-tread tractor |
| Factory: | Rock Island, Illinois, USA |
| Total built: | 24,377 |
| Original price: | $1,900 |
| The W-4 is the "regular" or standard-tread version of the Farmall H. | |
Variants | |
| row-crop | |
| industrial | |
| orchard |
McCormick-Deering W-4 Power | |
| Drawbar (claimed): | 22.5 hp 16.8 kW |
| Belt (claimed): | 24.9 hp 18.6 kW |
| Drawbar (tested): | 23.97 hp 17.9 kW |
| Belt (tested): | 26.21 hp 19.5 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Brakes: | differential mechanical external contracting band |
| Cab: | Open operator station. |
| Transmission: | 5-speed sliding gear |
Power Take-off (PTO) | |
| Rear PTO: | transmission |
| Rear RPM: | 540 |
W-4 Serial Numbers | |
| Location: | Left side of tractor, on clutch housing. |
| 1940: | WBH501 |
| 1941: | WBH943 |
| 1942: | WBH4056 |
| 1943: | WBH5693 |
| 1944: | WBH7593 |
| 1945: | WBH11171 |
| 1946: | WBH13934 |
| 1947: | WBH16022 |
| 1948: | WBH18880 |
| 1949: | WBH21912 |
| 1950: | WBH24470 |
| 1951: | WBH28167 |
| 1952: | WBH31214 |
| 1953: | WBH33067 |
Electrical | |
| Ground: | positive |
| Charging system: | generator |
| Charging amps: | 11 |
| Battery volts: | 6 |
Engine Detail | |
| International Harvester | |
| distillate | |
| 4-cylinder | |
| liquid-cooled vertical I-head | |
| Displacement: | 152.1 ci 2.5 L |
| Bore/Stroke: | 3.375x4.25 inches 86 x 108 mm |
| Air cleaner: | oil bath |
| Compression: | 4.75:1 |
| Rated RPM: | 1650 |
| Idle RPM: | 400-1815 |
| Firing order: | 1-2-4-3 |
| Starter volts: | 6 |
| Coolant capacity: | 18 qts 17.0 L |
| Sparkplug gap: | 0.023 inches 0.584 mm |
| Intake valve clearance: | 0.017 inches 0.432 mm (hot) |
| Exhaust valve clearance: | 0.017 inches 0.432 mm (hot) |
Transmission | |
| Type: | sliding gear |
| Gears: | 5 forward and 1 reverse |
| Clutch: | dry disc |
| Oil capacity: | 24 qts 22.7 L |
Dimensions | |
| Wheelbase: | 66.75 inches 169 cm |
| Length: | 114 inches 289 cm |
| Width: | 65.25 inches 165 cm |
| Height (steering wheel): | 62.75 inches 159 cm |
| Height (hood): | 51.9 inches 131 cm |
| Shiping weight: | 3050 lbs 1383 kg |
| Clearance (front axle): | 15.125 inches 38 cm |
| Front tread: | 45.875 inches 116 cm |
| Rear tread: | 52 inches 132 cm |
