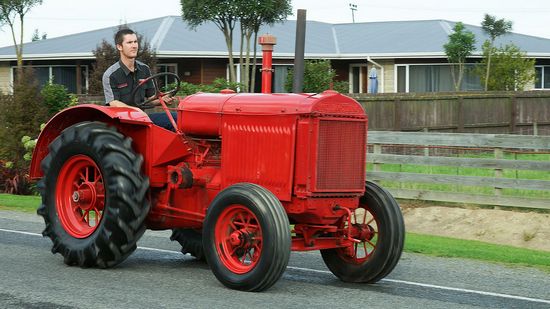

McCormick-Deering W-30
Type: Standard-tread Tractors
Contents:
Production | |
| Manufacturer: | McCormick-Deering (a part of International Harvester) |
| Type: | Standard-tread tractor |
| Factory: | Chicago, Illinois, USA |
| Total built: | 32,541 |
McCormick-Deering W-30 Power | |
| Drawbar (claimed): | 18 hp 13.4 kW |
| Belt (claimed): | 25 hp 18.6 kW |
| Plows: | 3 |
| Drawbar (tested): | 24.29 hp 18.1 kW |
| Belt (tested): | 33.26 hp 24.8 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Cab: | Open operator station. |
| Transmission: | 3-speed gear |
W-30 Serial Numbers | |
| Location: | Serial number plate ahead of steering column on the W-30, below the fuel tank. |
Engine Detail | |
| International Harvester | |
| distillate | |
| 4-cylinder | |
| liquid-cooled vertical I-head | |
| Displacement: | 283.7 ci 4.6 L |
| Bore/Stroke: | 4.25x5.00 inches 108 x 127 mm |
| Fuel system: | Zenith carburetor |
| Air cleaner: | oil bath |
| Rated RPM: | 1150 |
| Coolant capacity: | 44 qts 41.6 L |
Transmission | |
| Type: | gear |
| Gears: | 3 forward and 1 reverse |
| Clutch: | dry disc |
Dimensions | |
| Length: | 122 inches 309 cm |
| Width: | 66.3 inches 168 cm |
| Height: | 60 inches 152 cm |
| Weight: | 4,850 lbs 2199 kg |
