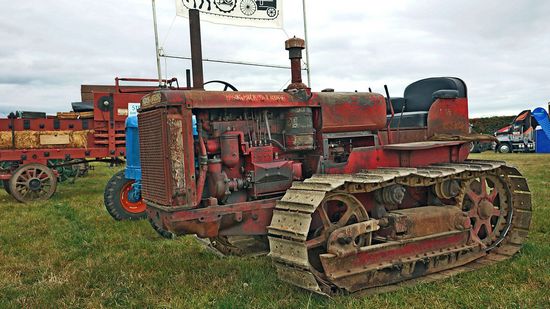

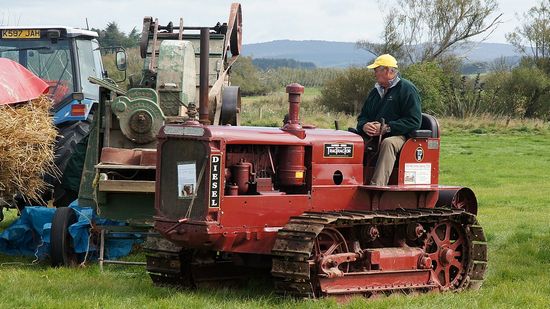

McCormick-Deering TD-35
Contents:
Production | |
| Manufacturer: | McCormick-Deering (a part of International Harvester) |
| Type: | Agricultural Crawler tractor |
| Factory: | Melrose Park, Illinois, USA |
McCormick-Deering TD-35 Power | |
| Drawbar (claimed): | 27 hp 20.1 kW |
| Belt (claimed): | 37 hp 27.6 kW |
| Drawbar (tested): | 37.09 hp 27.7 kW |
| Belt (tested): | 42.2 hp 31.5 kW |
Mechanical | |
| Chassis: | crawler |
| Cab: | Open operator station. |
| Transmission: | 5-speed gear |
TD-35 Serial Numbers | |
| Location: | Seat, right side |
Engine Detail | |
| International Harvester | |
| diesel | |
| 4-cylinder | |
| liquid-cooled vertical I-head | |
| Displacement: | 413.5 ci 6.8 L |
| Bore/Stroke: | 4.50x6.50 inches 114 x 165 mm |
| Rated RPM: | 1100 |
| Coolant capacity: | 52 qts 49.2 L |
Transmission | |
| Type: | gear |
| Gears: | 5 forward and 1 reverse |
| Clutch: | dry dsic |
Dimensions | |
| Length: | 132.5 inches 336 cm |
| Width: | 59.5 inches 151 cm |
| Weight: | 10550 lbs 4785 kg |
| Operating weight: | 11245 lbs 5100 kg |
