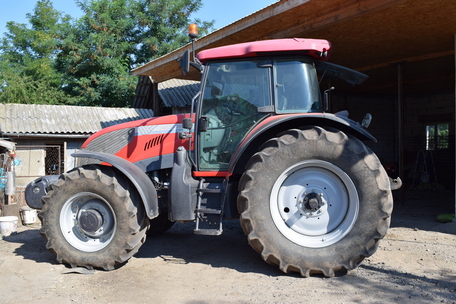

McCormick Intl G165 Max

Production: 2011 - 2015

Production
Manufacturer:	McCormick Intl (a part of Argo)
Type:	Row-Crop tractor

McCormick Intl G165 Max Power
PTO (claimed):	135 hp 100.7 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	wet disc
Trailer brakes:	hydraulic (optional)
Cab:	Two-post ROPS. Cab optional with air-conditioning.
Transmission:	36-speed mechanical shuttle

Hydraulics
Valves:	3 to 5
Pump flow:	18 gpm 68.1 lpm
Total flow:	28 gpm 106.0 lpm

Tractor hitch
Rear Type:	III/II
Control:	position control
Rear lift:	18480 lbs 8382 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000 (1.375)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
BetaPower
turbocharged air-to-air intercooled diesel
6-cylinder
liquid-cooled
Displacement:	410.6 ci 6.7 L
Bore/Stroke:	4.094x5.197 inches 104 x 132 mm
Emissions:	Tier 3
Maximum Power:	157 hp 117.1 kW
Compression:	17.5:1
Rated RPM:	2200
Torque:	509 lb-ft 690.2 Nm
Torque RPM:	1250
Starter:	electric
Starter volts:	12

Transmission
Type:	mechanical shuttle
Gears:	36 forward and reverse
Clutch:	355mm dry disc

Dimensions
Wheelbase:	110 inches 279 cm
Length:	214.5 inches 544 cm
Width:	94 inches 238 cm
Height (ROPS):	110.5 inches 280 cm
Weight:	13750 lbs 6237 kg
Ground clearance:	21.5 inches 54 cm
Rear tread:	70.5 to 90 inches 179 to 228 cm
