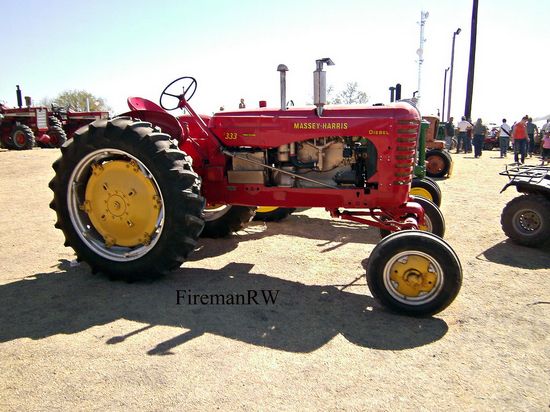

Massey-Harris 333

Production: 1956 - 1958

Production
Manufacturer:	Massey-Harris
Type:	Row-Crop tractor
Factory:	Racine, Wisconsin, USA
Total built:	2,748
Original price:	$3,000 (1958)

Massey-Harris 333 Power
Drawbar (claimed):	27 hp 20.1 kW
PTO (claimed):	37 hp 27.6 kW
Drawbar (tested):	37.26 hp 27.8 kW
Belt (tested):	41.89 hp 31.2 kW

Mechanical
Chassis:	4x2 2WD
Steering:	manual
power optional
Brakes:	mechanical expanding shoe
Cab:	Open operator station.
Transmission:	10-speed gear

Tractor hitch
Rear Type:	I

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540

333 Serial Numbers
Location:	Right side of tractor frame.

Engine Detail
Continental E-208
gasoline
4-cylinder
liquid-cooled vertical I-head
Displacement:	208 ci 3.4 L
Bore/Stroke:	3.6875x4.875 inches 94 x 124 mm
Air cleaner:	oil bath
Compression:	7.15:1
Rated RPM:	1500
Starter volts:	12
Coolant capacity:	17.33 qts 16.4 L

Transmission
Type:	gear
Gears:	10 forward and 2 reverse
Five gears (1-5) plus reverse (R) in two ranges (low/high).

Dimensions
Wheelbase:	88.1 inches 223 cm
Height:	84 inches 213 cm
Operating weight:	6,000 lbs 2721 kg
Ballasted weight:	7,935 lbs 3599 kg
