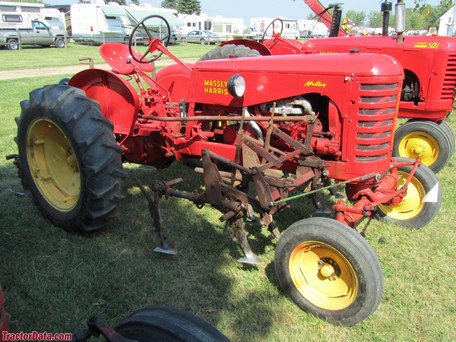

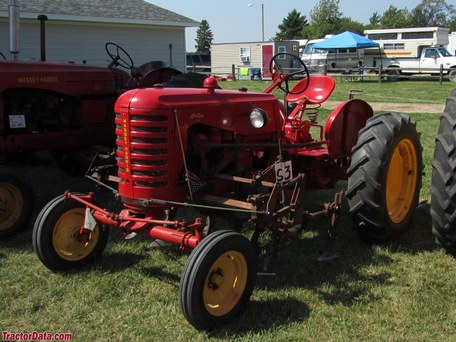

Massey-Harris 23 Mustang
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Massey-Harris (a part of Massey Ferguson) |
| Type: | Row-Crop tractor |
| The Marris-Harris model 23 Mustang replaced the model 22 in 1952. It featured new styling, but was mechanically similar. | |
Massey-Harris 23 Mustang Power | |
| PTO (claimed): | 27 hp 20.1 kW |
| Plows: | 2 |
Mechanical | |
| Chassis: | 4x2 2WD |
| Cab: | Open operator station. |
| Transmission: | 4-speed unsynchronized gear |
Power Take-off (PTO) | |
| Rear RPM: | 540 |
23 Mustang Serial Numbers | |
| 1952: | 1001 |
| 1953: | 1666 |
| 1954: | 4346 |
| 1955: | 4553 |
| 1956: | 4773 |
Electrical | |
| Charging system: | generator |
Engine Detail | |
| Continential F140 | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 140 ci 2.3 L |
| Bore/Stroke: | 3.1875x4.375 inches 81 x 111 mm |
| Rated RPM: | 1500 |
| Oil capacity: | 5 qts 4.7 L |
| Coolant capacity: | 11 qts 10.4 L |
Transmission | |
| Type: | unsynchronized gear |
| Gears: | 4 forward and 1 reverse |
| Oil capacity: | 8 qts 7.6 L |
Dimensions | |
| Wheelbase: | 82.75 inches 210 cm (row-crop) |
| 76 inches 193 cm (standard) | |
| 87 inches 220 cm (high-arch) | |
| Width: | 70.9 inches 180 cm (standard) |
| 93.25 inches 236 cm (row-crop) | |
| Operating weight: | 2,928 lbs 1328 kg |
| Ballasted weight: | 4,522 lbs 2051 kg |
