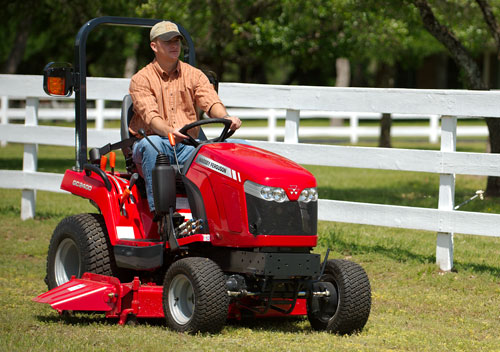

Massey Ferguson GC2400

Production: 2008 - 2012

Production
Distributor:	Massey Ferguson
Manufacturer:	Iseki
Type:	Sub-Compact Utility tractor
Original price:	$9,624 (2009 )

Variants

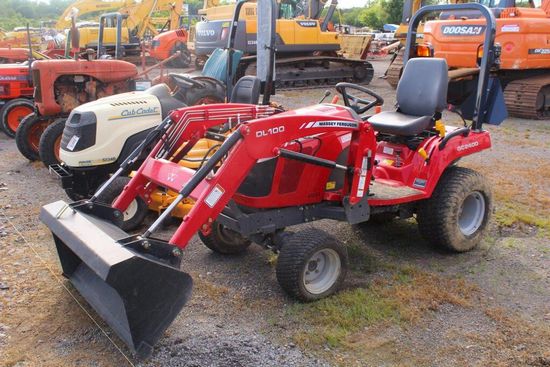

tractor with loader and backhoe

Massey Ferguson GC2400 Power
Engine (gross):	22.5 hp 16.8 kW
PTO (claimed):	18.7 hp 13.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post fixed ROPS.
Transmission:	hydrostatic

Capacity
Fuel:	6.6 gal 25.0 L
Hydraulic system:	2.9 gal 11.0 L
Front axle:	4.2 qts 4.0 L

Hydraulics
Type:	open center
Capacity:	2.9 gal 11.0 L
Pump flow:	4.3 gpm 16.3 lpm
Total flow:	6.3 gpm 23.8 lpm
Steering flow:	2 gpm 7.6 lpm

Tractor hitch
Rear Type:	I
Rear lift (at ends):	1190 lbs 539 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540
Mid PTO:	independent
Mid RPM:	2000

Electrical
Ground:	negative
Battery CCA:	390
Battery volts:	12

Engine Detail
Iseki E3112
diesel
3-cylinder
liquid-cooled
Displacement:	68.5 ci 1.1 L
Bore/Stroke:	3.08x3.07 inches 78 x 78 mm
Power (gross):	22.5 hp 16.8 kW
Rated RPM:	2600
Starter:	electric
Starter volts:	12
Oil capacity:	2.7 qts 2.6 L
Coolant capacity:	4.9 qts 4.6 L

Transmission
Type:	hydrostatic
Gears:	infinite (2-range) forward and reverse
Oil capacity:	11.6 qts 11.0 L

Dimensions
Wheelbase:	57.1 inches 145 cm
Length:	97.6 inches 247 cm
Width:	46.9 inches 119 cm
Height (ROPS):	72.8 inches 184 cm
Ground clearance:	6.7 inches 17 cm
Front tread:	36.6 inches 92 cm
Rear tread:	33 inches 83 cm
