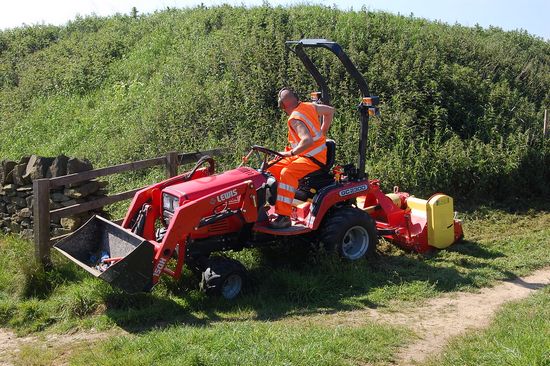

Massey Ferguson GC2300

Production: 2005 - 2008

Production
Distributor:	Massey Ferguson
Manufacturer:	Iseki
Type:	Sub-Compact Utility tractor

Variants

tractor with loader and backhoe

Massey Ferguson GC2300 Power
Engine:	22.5 hp 16.8 kW
PTO (claimed):	18.7 hp 13.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post fixed ROPS.
Transmission:	hydrostatic

Hydraulics
Type:	open center
Pump flow:	4.1 gpm 15.5 lpm
Total flow:	6.1 gpm 23.1 lpm
Steering flow:	2 gpm 7.6 lpm

Tractor hitch
Rear Type:	I
Rear lift (at ends):	1190 lbs 539 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540
Mid PTO:	independent
Mid RPM:	2000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Iseki
diesel
3-cylinder
liquid-cooled
Displacement:	68.5 ci 1.1 L
Bore/Stroke:	3.08x3.07 inches 78 x 78 mm
Power:	22.5 hp 16.8 kW
Rated RPM:	2600
Starter volts:	12

Transmission
Type:	hydrostatic
Gears:	infinite (2-range) forward and reverse

Dimensions
Wheelbase:	57.1 inches 145 cm
Length:	97.6 inches 247 cm
Width:	45.8 inches 116 cm
Height:	72.8 inches 184 cm
Shiping weight:	1367 lbs 620 kg
Ground clearance:	6.9 inches 17 cm
