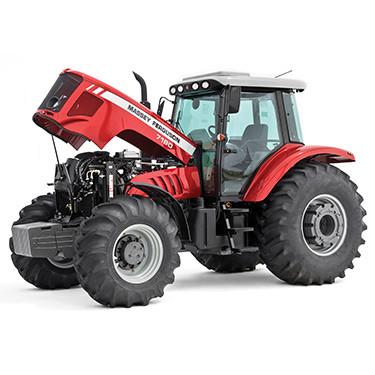

Massey Ferguson 7150

Production: 2009

Production
Manufacturer:	Massey Ferguson
Type:	Row-Crop tractor
Factory:	Canoas, Brazil

Massey Ferguson 7150 Power
Engine:	150 hp 111.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Final drives:	planetary
Steering:	hydrostatic power
Brakes:	hydraulic wet disc
Cab:	Two-post ROPS with canopy. Cab available with air-conditioning. Auto Guide 3000 (optional)
AGCOCOMMAND (optional)
Transmission:	12-speed synchromesh

Hydraulics
Type:	load sensing
Pressure:	2900 psi 200.0 bar
Valves:	4
Pump flow:	36.46 gpm 138.0 lpm

Tractor hitch
Rear Type:	II
Control:	position and draft control
Rear lift:	10360 lbs 4699 kg
12130 lbs 5502 kg (optional)

Power Take-off (PTO)
Rear RPM:	540/1000
Engine RPM:	540@2143 1000@2160

Electrical
Charging amps:	120
Charging volts:	12
Battery volts:	12
Battery AH:	170

Engine Detail
AGCO SISU Power 620 DS
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	402.8 ci 6.6 L
Power:	150 hp 111.9 kW
Rated RPM:	2200
Torque:	442.5 lb-ft 600.0 Nm
Torque RPM:	1400

Transmission
Type:	synchromesh
Gears:	12 forward and 5 reverse

Dimensions
Wheelbase:	120.9 inches 307 cm
Length:	200 inches 508 cm
Height:	123.6 inches 313 cm
Cab Ballasted weight:	18190 lbs 8250 kg
ROPS Ballasted weight:	17700 lbs 8028 kg
