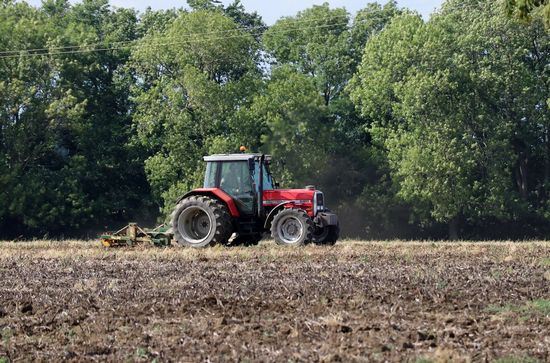

Massey Ferguson 6180

Production: 1995 - 1998

Production
Manufacturer:	Massey Ferguson
Type:	Row-Crop tractor
Original price:	$58,000 (1998 )

Massey Ferguson 6180 Power
PTO (claimed):	110 hp 82.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	hydraulic wet disc
Cab:	QuietView cab standard with air-conditioning.
Transmissions:	16-speed synchronized
32-speed four-speed power shift

Capacity
Fuel:	42.3 gal 160.1 L
Hydraulic system:	18 gal 68.1 L

Hydraulics
Type:	open center
Capacity:	18 gal 68.1 L
Pressure:	2931 psi 202.1 bar
Valves:	2 to 4
Pump flow:	14.9 gpm 56.4 lpm

Tractor hitch
Rear Type:	II
Control:	electronic draft control
Rear lift (at ends):	9590 lbs 4350 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540/1000
Engine RPM:	540@1980 540E@1550 1000@2000 1000E@1550

Electrical
Ground:	negative
Charging system:	alternator
Batteries:	2
Battery volts:	12

Engine Detail
Perkins 1006-6T
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	365 ci 6.0 L
Bore/Stroke:	3.94x5.00 inches 100 x 127 mm
Air cleaner:	dual dry element
Rated RPM:	2200
Starter volts:	12
Coolant capacity:	26.4 qts 25.0 L

Dimensions
Wheelbase:	106 inches 269 cm
Length:	178 inches 452 cm
Width:	76 inches 193 cm
Height (cab):	109 inches 276 cm
2WD Weight:	11153 lbs 5059 kg
4WD Weight:	11385 lbs 5164 kg
2WD Front tread:	60.5 to 99.6 inches 153 to 252 cm
4WD Front tread:	61.6 to 80.5 inches 156 to 204 cm
Rear tread:	60.3 to 88.2 inches 153 to 224 cm
