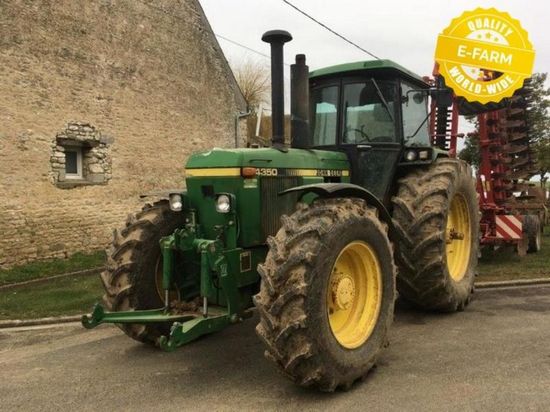

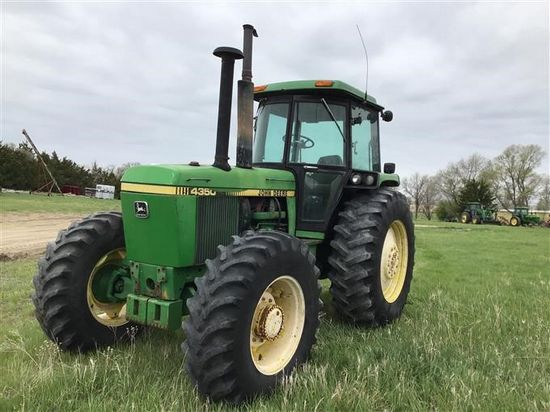

John Deere 4350
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Row-Crop tractor |
| Factory: | Mannheim, Baden-Württemberg, Germany |
John Deere 4350 Power | |
| Engine: | 138 hp 102.9 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | hydrostatic power |
| Brakes: | wet disc |
| Cab: | SG2 Cab standard with air-conditioning. |
| Transmission: | 16-speed partial power shift |
Hydraulics | |
| Type: | closed center |
| Pressure: | 2496 psi 172.1 bar |
| Valves: | 2 or 3 |
| Pump flow: | 25.4 gpm 96.1 lpm |
Tractor hitch | |
| Rear Type: | IIIN/II |
| Control: | position and lower-link draft control |
| Rear lift: | 13283 lbs 6025 kg |
| Rear Arms: | telecopic lower links |
| quick hitch*Optional. | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic disc |
| Rear RPM: | 540/1000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 90 |
| Batteries: | 2 |
| Battery volts: | 12 |
| Battery AH: | 88 |
Engine Detail | |
| John Deere | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 466 ci 7.6 L |
| Bore/Stroke: | 4.56x4.75 inches 116 x 121 mm |
| Power: | 138 hp 102.9 kW |
| Compression: | 16.8:1 |
| Rated RPM: | 2200 |
| Torque: | 442.5 lb-ft 600.0 Nm |
| Torque RPM: | 1400 |
| Starter: | electric |
| Starter volts: | 12 |
| Starter power: | 5.9 hp 4.4 kW |
Transmission | |
| Transmission: | John Deere Quad-Range |
| Type: | partial power shift |
| Gears: | 16 forward and 6 reverse |
| Four gears (1-4) in four ranges (A-D). Power shift between gear pairs 1-2 and 3-4 in each range. Synchronized shift between gears 2 and 3. | |
Dimensions | |
| Wheelbase: | 105.3 inches 267 cm |
| Length: | 183.5 inches 466 cm |
| Width: | 96 inches 243 cm |
| Height (cab): | 114.7 inches 291 cm |
| Height (exhaust): | 124.3 inches 315 cm |
| Shiping weight: | 14088 lbs 6390 kg |
| Front tread: | 63 to 84.3 inches 160 to 214 cm |
| Rear tread: | 62.6 to 92.5 inches 159 to 234 cm |
