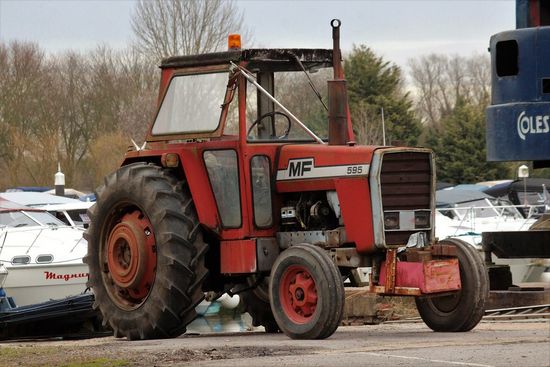

Massey Ferguson 595
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Massey Ferguson |
| Type: | Row-Crop tractor |
| Factory: | Beauvais, France |
Massey Ferguson 595 Power | |
| Engine: | 86.8 hp 64.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | outboard planetary |
| Steering: | hydrostatic power |
| Brakes: | wet disc |
| Cab: | Cab standard. |
| Transmissions: | 12-speed partial power shift |
| 8-speed | |
Hydraulics | |
| Type: | open center |
| Pressure: | 2400 psi 165.5 bar |
| Pump flow: | 6.7 gpm 25.4 lpm |
Tractor hitch | |
| Rear Type: | 2 |
| Control: | position and draft control with top-link sensing |
| Rear lift: | 5,400 lbs 2449 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic wet disc |
| Rear RPM: | 540 (1.375) |
| 1000 (1.375) | |
| Engine RPM: | 540@1750 1000@2000 |
Engine Detail | |
| Perkins A4.318 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| By 1980, Massey Ferguson model 595 tractors sold in certain markets were equipped with turbochargers. | |
| Displacement: | 318 ci 5.2 L |
| Bore/Stroke: | 4.50x5.00 inches 114 x 127 mm |
| Power: | 86.8 hp 64.7 kW |
| Rated RPM: | 2000 |
| Torque: | 253 lb-ft 343.1 Nm |
| Torque RPM: | 1300 |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 104.3 inches 264 cm (2WD) |
| 102.4 inches 260 cm (4WD) | |
| Length: | 175.6 inches 446 cm |
| Height (cab): | 103.5 inches 262 cm |
| Weight: | 9,040 lbs 4100 kg (2WD) |
| 9,900 lbs 4490 kg (4WD) | |
