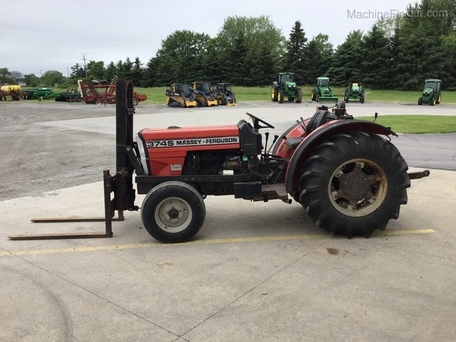

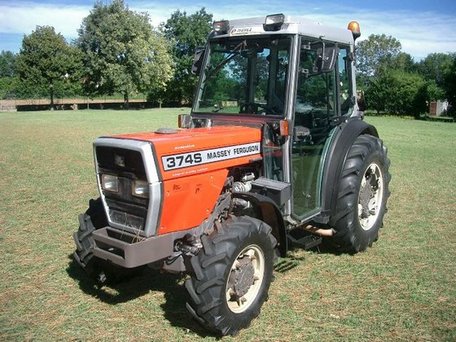

Massey Ferguson 374S

Production: 1994 - 1999

Production
Manufacturer:	Massey Ferguson
Type:	Orchard/Vineyard tractor
Factory:	Italy
Original price:	$26,500 (1999 )

Variants

narrow

narrow

low-profile

ultra-narrow

Massey Ferguson 374S Power
PTO (claimed):	57 hp 42.5 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	electro-hydraulic front and rear
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Two-post mid-mount ROPS. Cab available.
Transmissions:	12-speed synchro
12-speed shuttle
24-speed creeper

Hydraulics
Rear valves:	2
Front valves:	3*Optional
Pump flow:	11.2 gpm 42.4 lpm
14.3 gpm 54.1 lpm *Optional

Tractor hitch
Rear Type:	II/I
Rear lift (at ends):	5732 lbs 2600 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/750
540/1000
Engine RPM:	540@1960

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Perkins A4.236
diesel
4-cylinder
liquid-cooled
Displacement:	236 ci 3.9 L
Bore/Stroke:	3.875x5.00 inches 98 x 127 mm
Air cleaner:	dry
Rated RPM:	2200
Starter volts:	12

Dimensions
2WD Wheelbase:	81.5 inches 207 cm
4WD Wheelbase:	79.3 inches 201 cm
Length:	135.6 inches 344 cm
Width:	53.5 inches 135 cm
2WD Weight:	5181 lbs 2350 kg
4WD Weight:	5512 lbs 2500 kg
Clearance (drawbar):	14.4 inches 36 cm
2WD Front tread:	42.8 to 58.5 inches 108 to 148 cm
4WD Front tread:	42.3 to 54.1 inches 107 to 137 cm
Rear tread:	38.6 to 60.2 inches 98 to 152 cm
