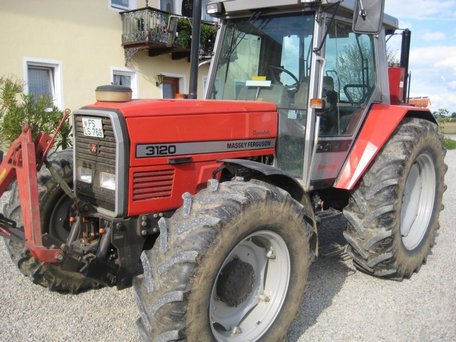

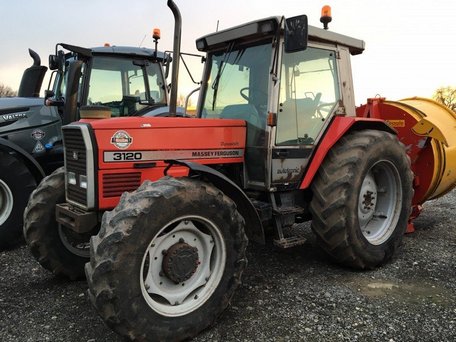

Massey Ferguson 3120

Production: 1993 - 1995

Production
Manufacturer:	Massey Ferguson
Type:	Row-Crop tractor
Factory:	Beauvais, France

Massey Ferguson 3120 Power
Engine:	120 hp 89.5 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	hydraulic wet disc
Cab:	Cab standard.
Transmission:	32-speed four-speed power shift

Hydraulics
Pressure:	2610 psi 180.0 bar
Pump flow:	13.74 gpm 52.0 lpm

Tractor hitch
Rear lift:	14,330 lbs 6500 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Perkins Quadram 1000
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	365 ci 6.0 L
Bore/Stroke:	3.94x5.00 inches 100 x 127 mm
Power:	120 hp 89.5 kW
Rated RPM:	2200
Torque:	361.4 lb-ft 490.1 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12

Transmission
Transmission:	Dynashift
Type:	four-speed power shift
Gears:	32 forward and reverse

Dimensions
Wheelbase:	106.3 inches 270 cm
Length:	180.7 inches 458 cm
Weight:	10,470 lbs 4749 kg
