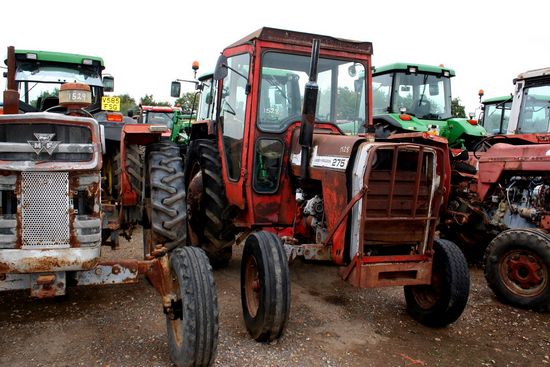

Massey Ferguson 275

Production: 1977 - 1987

Production
Manufacturer:	Massey Ferguson
Type:	Utility tractor

Massey Ferguson 275 Power
Engine (gross):	70 hp 52.2 kW
Engine (net):	66 hp 49.2 kW

Mechanical
Chassis:	4x2 2WD
Steering:	manual
power*Optional
Brakes:	mechanical wet disc
Cab:	Open operator station. Cab optional with available air-conditioning.
Transmissions:	8-speed
12-speed

Capacity
Fuel:	21 gal 79.5 L
Hydraulic system:	10.3 gal 39.0 L

Hydraulics
Type:	open center
Capacity:	10.3 gal 39.0 L
Pressure:	2500 psi 172.4 bar
Valves:	1
Pump flow:	13.7 gpm 51.9 lpm

Tractor hitch
Rear Type:	II
Rear lift (at ends):	3962 lbs 1797 kg

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	540@1685

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Perkins A4.236
diesel
4-cylinder
liquid-cooled
Displacement:	236 ci 3.9 L
Bore/Stroke:	3.875x5.00 inches 98 x 127 mm
Power (gross):	70 hp 52.2 kW
Compression:	16:1
Rated RPM:	2000
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	88.6 inches 225 cm
Length:	148.8 inches 377 cm
Width:	72 inches 182 cm
Height (steering wheel):	68.1 inches 172 cm
Weight:	5560 lbs 2522 kg
