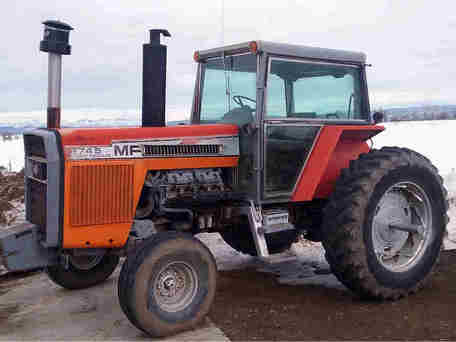

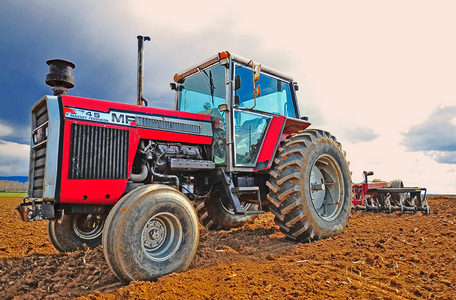

Massey Ferguson 2745
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Massey Ferguson |
| Type: | Row-Crop tractor |
| Original price: | $44,500 (1983 ) |
Massey Ferguson 2745 Power | |
| PTO (claimed): | 140 hp 104.4 kW |
| Drawbar (tested): | 122.28 hp 91.2 kW |
| PTO (tested): | 143.40 hp 106.9 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Final drives: | planetary |
| Steering: | hydrostatic power |
| Brakes: | hydraulic wet disc |
| Cab: | Cab standard with air-conditioning. Available platform configuration with four-post ROPS. |
| Transmissions: | 24-speed 3-speed power shift |
| 8-speed mechanical shuttle | |
Hydraulics | |
| Type: | open center |
| Valves: | 2 or 3 |
| Pump flow: | 17.1 gpm 64.7 lpm (high-pressure) |
| 6.6 gpm 25.0 lpm (low-pressure) | |
| 17.1 gpm 64.7 lpm (aux. high-pressure) | |
| Steering flow: | 5.7 gpm 21.6 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | position control and lower-link draft sensing |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic |
| Rear RPM: | 540/1000 (1.375) |
| Engine RPM: | 540@1990 1000@2090 |
2745 Serial Numbers | |
| Location: | Serial number plate to the left of the tractor's instrument panel. |
| 1978: | 9R000733 |
| 1979: | 9R003482 |
| 1980: | 9R007282 |
| 1981: | 9R010307 |
| 1982: | 9R013230 |
| 1983: | 9R013525 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 58 |
| Batteries: | 2 |
| Battery volts: | 12 |
Engine Detail | |
| Perkins 8.540 | |
| diesel | |
| 8-cylinder | |
| liquid-cooled | |
| Displacement: | 539 ci 8.8 L |
| Bore/Stroke: | 4.25x4.75 inches 108 x 121 mm |
| Fuel system: | direct injection |
| Air cleaner: | dual dry element |
| Compression: | 18.4:1 |
| Rated RPM: | 2600 |
| Starter: | electric |
| Starter volts: | 12 |
| Oil capacity: | 20 qts 18.9 L |
| Coolant capacity: | 50 qts 47.3 L |
Dimensions | |
| Wheelbase: | 110 inches 279 cm |
| Length: | 181.6 inches 461 cm |
| Width: | 91.6 inches 232 cm (standard axle) |
| 125.7 inches 319 cm (long axle) | |
| Clearance (front axle): | 23.8 inches 60 cm |
| Clearance (drawbar): | 15.6 inches 39 cm |
| Rear axle: | 3.75 inch diameter 95 mm |
| Front tread: | 60 to 80 inches 152 to 203 cm |
| Front tread: | 70 to 90 inches 177 to 228 cm (wide axle) |
| Rear tread: | 71 to 92 inches 180 to 233 cm (standard) |
| Rear tread: | 62 to 95 inches 157 to 241 cm (PAVT standard) |
| Rear tread: | 71 to 126 inches 180 to 320 cm (long) |
| Rear tread: | 62 to 129 inches 157 to 327 cm (PAVT long) |
