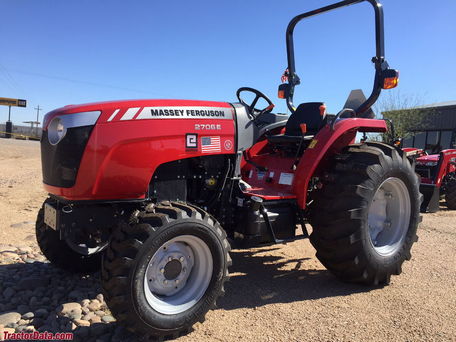

Massey Ferguson 2706E

Production: 2016 - 2019

Production
Manufacturer:	Massey Ferguson (a part of AGCO)
Type:	Utility tractor
Original price:	$25,189 (2016 shuttle )

Massey Ferguson 2706E Power
Engine:	57.3 hp 42.7 kW
Gear PTO (claimed):	48.7 hp 36.3 kW
Hydro PTO (claimed):	45.9 hp 34.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Final drives:	bull gear
Differential lock:	mechanical
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS.
Transmissions:	8-speed syncro-shuttle
hydrostatic

Hydraulics
Type:	open center
Valves:	0 to 3
Pump flow:	12.4 gpm 46.9 lpm

Tractor hitch
Rear Type:	II/I
Rear lift (at 24"/610mm):	2425 lbs 1099 kg
Rear Arms:	telescoping lower links

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540 (1.375)

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	90
Battery volts:	12

Engine Detail
Shibaura N4LDI-TA
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	135.2 ci 2.2 L
Bore/Stroke:	3.307x3.937 inches 84 x 100 mm
Emissions:	Tier IV
Emission control:	external cooled echaust gas recirculation with diesel oxidation catalyst
Power:	57.3 hp 42.7 kW
Fuel system:	high-pressure common rail
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	78 inches 198 cm
Length:	133 inches 337 cm
Width:	74 inches 187 cm
Height (ROPS):	104 inches 264 cm
80 inches 203 cm *ROPS folded
Gear Weight:	3847 lbs 1744 kg
Hydro Weight:	3891 lbs 1764 kg
