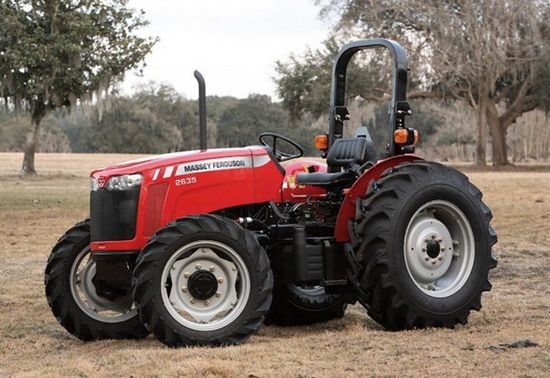

Massey Ferguson 2635

Production: 2010 - 2018

Production
Distributor:	Massey Ferguson (a part of AGCO)
Manufacturer:	TAFE
Type:	Utility tractor

Massey Ferguson 2635 Power
Engine (gross):	74 hp 55.2 kW
PTO (claimed):	62 hp 46.2 kW
60 hp 44.7 kW (independent PTO)

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Final drives:	outboard planetary
Differential lock:	foot operated
Steering:	hydrostatic power
Brakes:	wet discs
Cab:	Two-post ROPS.
Transmissions:	8-speed
8-speed SynchroShuttle

Hydraulics
Type:	open center
Valves:	0 to 2
Pump flow:	4.7 gpm 17.8 lpm (3-point)
11 gpm 41.6 lpm (aux.)
Total flow:	22.8 gpm 86.3 lpm
Steering flow:	6.9 gpm 26.1 lpm

Tractor hitch
Rear Type:	II/I
Control:	position and top-link draft control
Rear lift (at ends):	4520 lbs 2050 kg
Rear Arms:	extendable lower links optional

Power Take-off (PTO)
Rear PTO:	live
independent optional
Clutch:	dual stage dry (live)
electro-hydraulic wet disc (independent)
Rear RPM:	540
Engine RPM:	540@1790

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	45
Battery CCA:	622
Battery volts:	12

Engine Detail
Simpson TSJ436E
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	220 ci 3.6 L
Bore/Stroke:	3.74x5.00 inches 95 x 127 mm
Emissions:	Tier III
Power (gross):	74 hp 55.2 kW
Pre-heating:	glow plugs
Rated RPM:	2200

Dimensions
Wheelbase:	81 inches 205 cm
Length:	138 inches 350 cm (2WD)
139 inches 353 cm (4WD)
Width:	73 inches 185 cm
Height (ROPS):	95 inches 241 cm
Shiping weight:	5,357 lbs 2429 kg (2WD)
5,798 lbs 2629 kg (4WD)
Clearance (drawbar):	13.5 inches 34 cm
