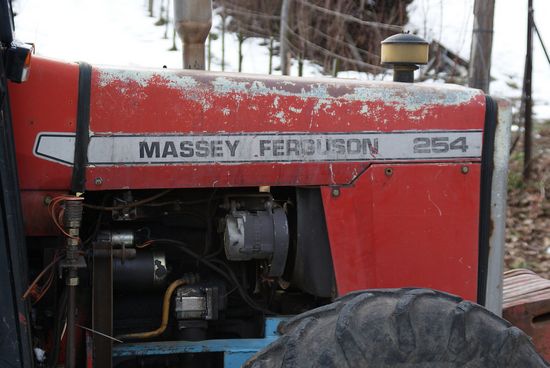

Massey Ferguson 254

Production: 1982 - 1987

Production
Manufacturer:	Massey Ferguson
Original price:	$20,600 (1987)

Massey Ferguson 254 Power
Engine:	50 hp 37.3 kW
PTO (claimed):	42 hp 31.3 kW
Drawbar (tested):	33.97 hp 25.3 kW
PTO (tested):	43.36 hp 32.3 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	pedal-operated
Steering:	hydrostatic power
Brakes:	differential mechanical dry disc
Cab:	Two-post ROPS.
Transmission:	12-speed synchromesh

Hydraulics
Type:	open
Pressure:	2250 psi 155.1 bar
Valves:	2
Pump flow:	9.2 gpm 34.8 lpm

Tractor hitch
Rear Type:	I
Control:	draft and position control
Rear lift (at ends):	5,070 lbs 2299 kg
Rear lift (at 24"/610mm):	3,670 lbs 1664 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/ground
Front PTO:	direct-drive
Front RPM:	2250

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Perkins AD3.152
diesel
3-cylinder
liquid-cooled
Displacement:	152 ci 2.5 L
Bore/Stroke:	3.60x5.00 inches 91 x 127 mm
Power:	50 hp 37.3 kW
Fuel system:	direct injection
Air cleaner:	oil bath
Compression:	16.5:1
Rated RPM:	2250
Torque:	132 lb-ft 179.0 Nm
Torque RPM:	1400
Starter volts:	12
Coolant capacity:	11 qts 10.4 L

Transmission
Type:	synchromesh
Gears:	12 forward and 4 reverse
Clutch:	11-inch dual dry disc
Four gears in three ranges, plus reverse range.

Dimensions
Wheelbase:	81.1 inches 205 cm
Length:	140 inches 355 cm
Width:	68.5 inches 173 cm
Height:	94.5 inches 240 cm
Operating weight:	5,485 lbs 2487 kg
Ballasted weight:	7,275 lbs 3299 kg
Clearance (front axle):	12 inches 30 cm
Front tread:	59.5 inches 151 cm
Rear tread:	55 to 75 inches 139 to 190 cm
