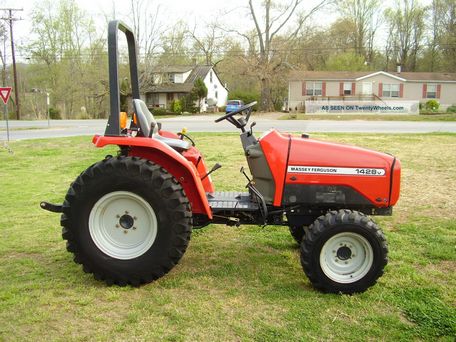

Massey Ferguson 1428

Production: 2002 - 2005

Production
Distributor:	Massey Ferguson
Manufacturer:	Iseki
Type:	Compact Utility tractor
Factory:	Matsuyama, Japan

Massey Ferguson 1428 Power
Engine (gross):	28.4 hp 21.2 kW
PTO (claimed):	24.5 hp 18.3 kW (gear)
22.3 hp 16.6 kW (hydro)

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Two-post fixed ROPS. Soft-side weather cab optional.
Transmissions:	9-speed gear
hydrostatic

Hydraulics
Type:	open center
Pressure:	2134 psi 147.1 bar
Pump flow:	7.4 gpm 28.0 lpm
Total flow:	10 gpm 37.9 lpm
Steering flow:	2.6 gpm 9.8 lpm

Tractor hitch
Rear Type:	I
Control:	position and response control, draft control optional
Rear lift (at ends):	2425 lbs 1099 kg
Rear Arms:	fixed link ends with turn-buckle stabilizers

Power Take-off (PTO)
Rear PTO:	live (gear)
independent (hydro)
Clutch:	dual-stage dry disc (gear)
wet discs (hydro)
Rear RPM:	540
Mid PTO:	optional
standard (with hydro)
Mid RPM:	2000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Iseki
diesel
3-cylinder
liquid-cooled
Displacement:	89.3 ci 1.5 L
Emissions:	Tier 2
Power (gross):	28.4 hp 21.2 kW
Fuel system:	indirect injection
Rated RPM:	2500
Starter volts:	12

Dimensions
Wheelbase:	65.6 inches 166 cm
Length:	116.5 inches 295 cm
Width:	55 inches 139 cm (min)
Height (ROPS):	79.3 inches 201 cm
Weight:	2013 lbs 913 kg (2WD gear)
2345 lbs 1063 kg (4WD hydro)
Front tread:	35.9 to 39.9 inches 91 to 101 cm
Rear tread:	43.1 inches 109 cm
