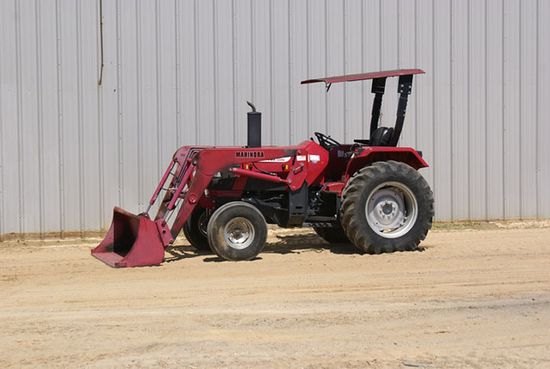

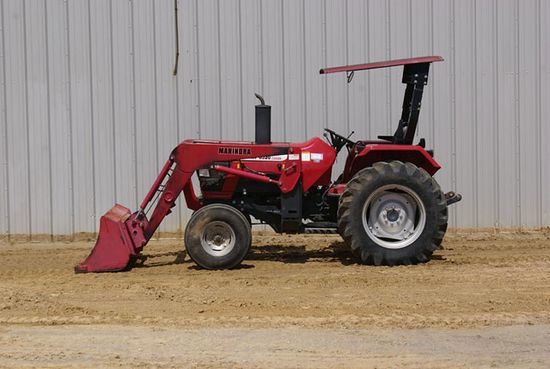

Mahindra 5530

Production: 2008

Production
Manufacturer:	Mahindra
Type:	Utility tractor
Original price:	$24,975 (2013 4WD )
Original price:	$18,440 (2013 2WD )

Mahindra 5530 Power
Engine:	55 hp 41.0 kW
PTO (claimed):	45 hp 33.6 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD (optional)
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Two-post foldable ROPS.
Transmissions:	8-speed synchronized shuttle
8-speed synchromesh

Hydraulics
Type:	open center
Valves:	1 or 2
Pump flow:	10.6 gpm 40.1 lpm
Steering flow:	4.5 gpm 17.0 lpm

Tractor hitch
Rear Type:	1/2
Control:	position and draft control
Rear lift:	3,968 lbs 1799 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540
Engine RPM:	540@2059

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	55
Batteries:	12
Battery volts:	12
Battery AH:	96

Engine Detail
Mahindra
turbocharged diesel
3-cylinder
liquid-cooled
Displacement:	152.4 ci 2.5 L
Power:	55 hp 41.0 kW
Fuel system:	direct injection
Compression:	17.2:1
Rated RPM:	2100
Starter:	electric
Starter volts:	12

Dimensions
2WD Length:	137 inches 347 cm
4WD Length:	140 inches 355 cm
2WD Width:	75 inches 190 cm
4WD Width:	79 inches 200 cm
2WD ROPS Operating weight:	5,464 lbs 2478 kg
4WD ROPS Operating weight:	5,976 lbs 2710 kg
