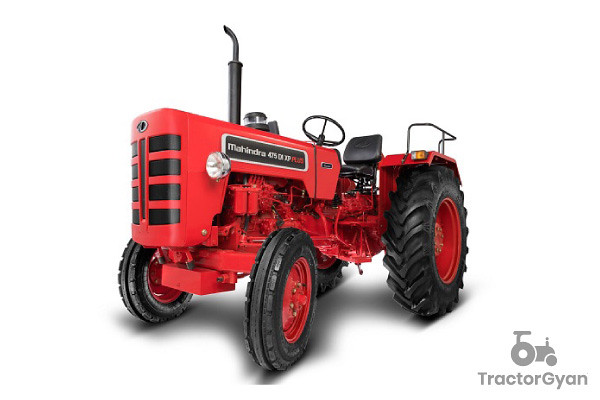

Mahindra 475

Production: 1995

Production
Manufacturer:	Mahindra
Type:	Utility tractor
Factory:	Maharashtra, India

Mahindra 475 Power
Engine:	40 hp 29.8 kW
PTO (claimed):	37 hp 27.6 kW

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Brakes:	dry disc
Cab:	Open operator station.
Transmission:	8-speed gear

Capacity
Fuel:	9.24 gal 35.0 L
Hydraulic system:	2.9 gal 11.0 L

Hydraulics
Type:	open center
Capacity:	2.9 gal 11.0 L
Pump flow:	8.24 gpm 31.2 lpm

Tractor hitch
Rear Type:	II/I
Control:	position and draft control
Rear lift:	2200 lbs 997 kg

Power Take-off (PTO)
Rear PTO:	transmssion
live (optional)
Clutch:	228.6mm dry disc
Rear RPM:	540 (1.375)
Engine RPM:	540@1980

Electrical
Ground:	negative
Charging amps:	11
Battery volts:	12
Battery AH:	88

Engine Detail
Mahindra
diesel
4-cylinder
Displacement:	145.5 ci 2.4 L
Bore/Stroke:	3.5x3.78 inches 89 x 96 mm
Power:	40 hp 29.8 kW
Rated RPM:	2300
Starter volts:	12
Coolant capacity:	10 qts 9.5 L

Transmission
Type:	gear
Gears:	8 forward and 2 reverse
Clutch:	279.4mm dry disc
Oil capacity:	19 qts 18.0 L
Four gears (1-4) plus reverse (R) in high and low ranges.

Dimensions
Wheelbase:	74.8 inches 189 cm
Length:	122.8 inches 311 cm
Width:	67 inches 170 cm
Height (steering wheel):	62 inches 157 cm
Operating weight:	3894 lbs 1766 kg
Ground clearance:	16.5 inches 41 cm
Front tread:	48 to 72 inches 121 to 182 cm
Rear tread:	50 to 74 inches 127 to 187 cm
