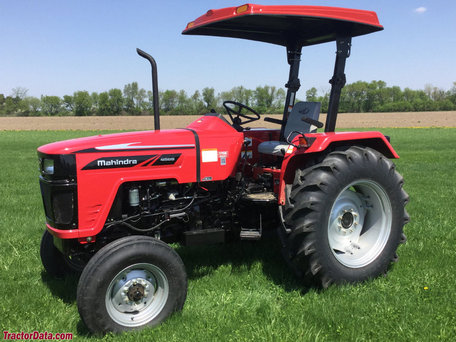

Mahindra 4565

Production: 2014

Production
Manufacturer:	Mahindra
Type:	Utility tractor
Original price:	$22,680 (2015 )

Mahindra 4565 Power
Engine:	62 hp 46.2 kW
PTO (claimed):	52 hp 38.8 kW

Mechanical
Chassis:	4x2 2WD
Differential lock:	mechanical rear
Steering:	power
Brakes:	dry disc
Cab:	Two-post foldable ROPS.
Transmission:	8-speed constant mesh

Capacity
Fuel:	14.8 gal 56.0 L
Hydraulic system:	9.3 gal 35.2 L

Hydraulics
Type:	open center
Capacity:	9.3 gal 35.2 L
Pressure:	2400 psi 165.5 bar
Valves:	1 or 2
Pump flow:	10.5 gpm 39.7 lpm
Total flow:	15.3 gpm 57.9 lpm
Steering flow:	4.8 gpm 18.2 lpm

Tractor hitch
Rear Type:	II
Control:	position control
Rear lift (at ends):	3527 lbs 1599 kg
Rear lift (at 24"/610mm):	2090 lbs 948 kg
Rear Arms:	telescopic stabilizers

Power Take-off (PTO)
Rear PTO:	continuous
Rear RPM:	540 (1.375)
Engine RPM:	540@2059

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	55
Charging volts:	12
Battery volts:	12
Battery AH:	96

Engine Detail
VNE 360
turbocharged intercooled diesel
3-cylinder
liquid-cooled
Displacement:	161.5 ci 2.6 L
Bore/Stroke:	3.78x4.80 inches 96 x 122 mm
Emissions:	Tier IV
Power:	62 hp 46.2 kW
Fuel system:	common rail direct injection
Air cleaner:	dry
Compression:	17.2:1
Rated RPM:	2100
Idle RPM:	850-2300
Firing order:	1-3-2
Starter:	electric
Starter volts:	12
Oil capacity:	9.3 qts 8.8 L
Coolant capacity:	9 qts 8.5 L

Transmission
Type:	constant mesh
Gears:	8 forward and 2 reverse
Clutch:	279.4mm dry disc

Dimensions
Wheelbase:	76.5 inches 194 cm
Length:	119 inches 302 cm
Width:	78 inches 198 cm
Height:	64 inches 162 cm
Height (ROPS):	95 inches 241 cm
Weight:	4884 lbs 2215 kg
Ground clearance:	14.25 inches 36 cm
Front tread:	52.5 to 68.5 inches 133 to 173 cm
Rear tread:	60 to 72 inches 152 to 182 cm
