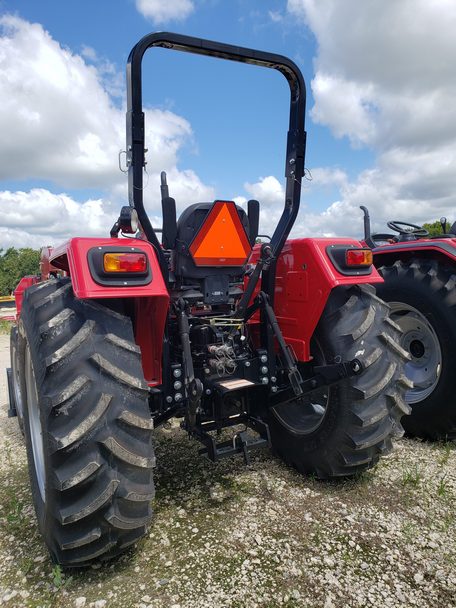

Mahindra 5570

Production: 2015

Production
Manufacturer:	Mahindra
Type:	Utility tractor
Original price:	$26.875 (2016 2WD )
Original price:	$33,000 (2016 4WD )

Mahindra 5570 Power
Engine:	70 hp 52.2 kW
PTO (claimed):	61 hp 45.5 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post foldable ROPS.
Transmission:	8-speed sync shuttle

Hydraulics
Type:	open center
Rear valves:	2
Pump flow:	11.2 gpm 42.4 lpm
Steering flow:	4.6 gpm 17.4 lpm

Tractor hitch
Rear Type:	II/I
Control:	position and draftcontrol
Rear lift:	3968 lbs 1799 kg
Rear Arms:	telescopic stabilizers

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)
Engine RPM:	540@2059

Electrical
Charging system:	alternator
Charging amps:	55
Charging volts:	12
Battery volts:	12
Battery AH:	96

Engine Detail
Mahindra
turbocharged intercooled diesel
3-cylinder
liquid-cooled
Displacement:	161.7 ci 2.7 L
Bore/Stroke:	3.78x4.80 inches 96 x 122 mm
Emissions:	Tier IV
Power:	70 hp 52.2 kW
Fuel system:	direct injection
Compression:	17.2:1
Rated RPM:	2100
Starter:	electric
Starter volts:	12

Transmission
Type:	sync shuttle
Gears:	8 forward and reverse
Clutch:	cerametallic dry disc

Dimensions
2WD Length:	138.3 inches 351 cm
4WD Length:	145 inches 368 cm
2WD Width:	77.3 inches 196 cm
4WD Width:	81 inches 205 cm
2WD Height (ROPS):	103.3 inches 262 cm
4WD Height (ROPS):	99.7 inches 253 cm
2WD Weight:	5557 lbs 2520 kg
4WD Weight:	6302 lbs 2858 kg
