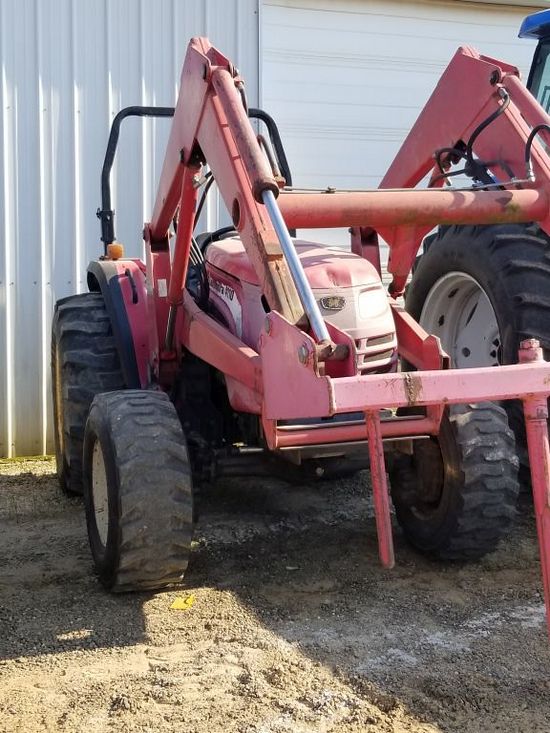

Mahindra 4110

Production: 2002 - 2009

Production
Distributor:	Mahindra
Manufacturer:	TYM
Type:	Compact Utility tractor
Factory:	South Korea

Mahindra 4110 Power
Engine:	41 hp 30.6 kW
PTO (claimed):	33.6 hp 25.1 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	wet disc
Transmission:	12-speed synchomesh shuttle

Hydraulics
Type:	open center
Valves:	1
Pump flow:	7.87 gpm 29.8 lpm
Steering flow:	4.64 gpm 17.6 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift:	2865 lbs 1299 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540/1000
Engine RPM:	540@2524 1000@2866

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	50
Charging volts:	12
Battery volts:	12
Battery AH:	110

Engine Detail
Mahindra 4A200
diesel
4-cylinder
liquid-cooled
Displacement:	122 ci 2.0 L
Power:	41 hp 30.6 kW
Fuel system:	indirect injection
Compression:	22:1
Rated RPM:	2700
Starter volts:	12

Transmission
Type:	synchomesh shuttle
Gears:	12 forward and reverse
Clutch:	dry disc

Dimensions
Length:	139 inches 353 cm
Width:	58.7 inches 149 cm
Weight:	3969 lbs 1800 kg
