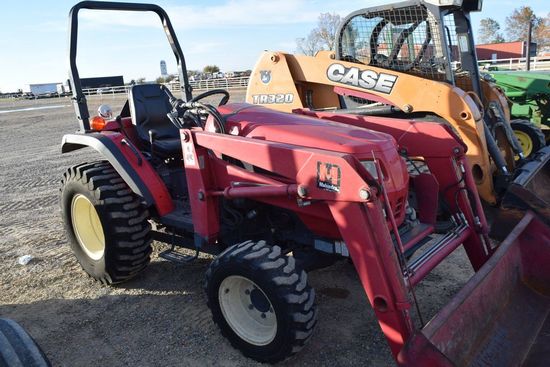

Mahindra 2810

Production: 2002 - 2006

Production
Distributor:	Mahindra
Manufacturer:	TYM
Type:	Compact Utility tractor
Factory:	South Korea

Mahindra 2810 Power
Engine:	28 hp 20.9 kW
PTO (claimed):	23 hp 17.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	wet disc
Transmissions:	12-speed synchomesh shuttle
hydrostatic

Hydraulics
Type:	open center
Gear Pump flow:	5.88 gpm 22.3 lpm
Hydro Pump flow:	6.3 gpm 23.8 lpm
Gear Steering flow:	3.07 gpm 11.6 lpm
Hydro Steering flow:	4.55 gpm 17.2 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Gear Rear lift:	2075 lbs 941 kg
Hydro Rear lift:	2080 lbs 943 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540
Engine RPM:	540@2541 (gear) 540@2775 (hydro)
Mid PTO:	independent (hydro only)
Clutch:	electro-hydraulic
Mid RPM:	2000
Engine RPM:	2000@2650

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	50
Charging volts:	12
Battery volts:	12
Battery AH:	75

Engine Detail
Mahindra 3A139
diesel
3-cylinder
liquid-cooled
Displacement:	85 ci 1.4 L
Power:	28 hp 20.9 kW
Fuel system:	indirect injection
Compression:	22:1
Rated RPM:	2700
Starter volts:	12

Dimensions
Gear Length:	124 inches 314 cm
Hydro Length:	114 inches 289 cm
Width:	52 inches 132 cm
Weight:	3064 lbs 1389 kg
