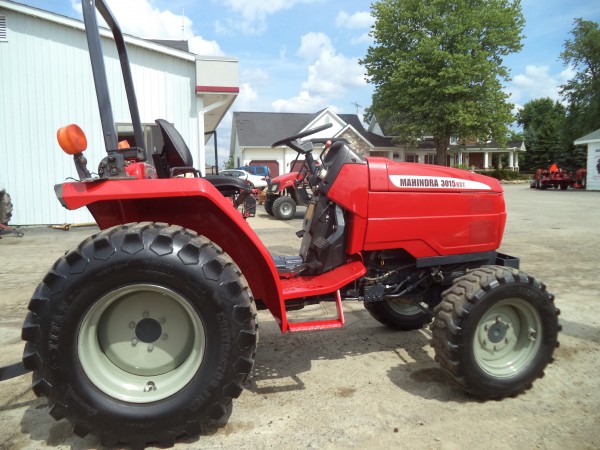

Mahindra 3015

Production: 2003 - 2008

Production
Distributor:	Mahindra
Manufacturer:	Mitsubishi
Type:	Compact Utility tractor

Mahindra 3015 Power
Engine:	30 hp 22.4 kW
PTO (claimed):	24 hp 17.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Two-post foldable ROPS.
Transmission:	hydrostatic

Hydraulics
Type:	open center
Valves:	1
Pump flow:	7.9 gpm 29.9 lpm
Steering flow:	3.6 gpm 13.6 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift:	2205 lbs 1000 kg

Power Take-off (PTO)
Rear PTO:	live
Clutch:	dry single plate
Rear RPM:	540
Engine RPM:	540@2376
Mid RPM:	2000
Engine RPM:	2000@2632

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	40
Battery volts:	12
Battery AH:	46

Engine Detail
Mitsubishi K3M-D
diesel
3-cylinder
liquid-cooled
Early naturally-aspirated engine.
Displacement:	91.3 ci 1.5 L
Bore/Stroke:	3.307x3.543 inches 84 x 90 mm
Power:	30 hp 22.4 kW
Compression:	18:1
Rated RPM:	2750
Starter volts:	12

Transmission
Type:	hydrostatic
Gears:	infinite (3-range) forward and reverse

Dimensions
Length:	115 inches 292 cm
Width:	53.7 inches 136 cm
Weight:	2601 lbs 1179 kg
