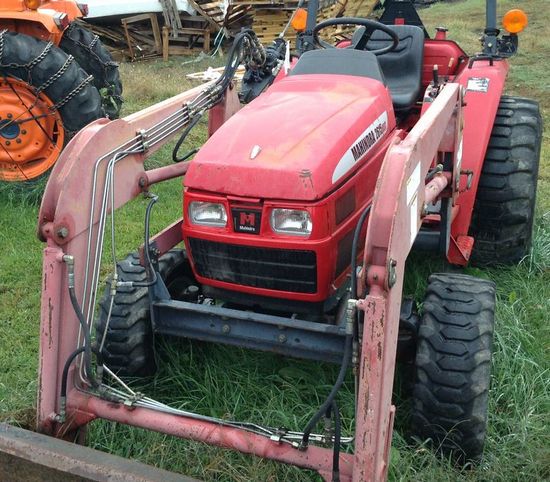

Mahindra 2615

Production: 2003 - 2008

Production
Distributor:	Mahindra
Manufacturer:	Mitsubishi
Type:	Compact Utility tractor

Mahindra 2615 Power
Engine:	26 hp 19.4 kW
PTO (claimed):	23 hp 17.2 kW (gear)
21.1 hp 15.7 kW (hydro)

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Two-post folding ROPS.
Transmissions:	9-speed constant mesh
hydrostatic

Hydraulics
Type:	opencenter
Valves:	1
Pump flow:	7.8 gpm 29.5 lpm
Steering flow:	3.5 gpm 13.2 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift:	2,205 lbs 1000 kg

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540
Engine RPM:	540@2376
Mid PTO:	optional
Mid RPM:	2000
Engine RPM:	2000@2632

Electrical
Charging amps:	50

Engine Detail
Mitsubishi S3L2
diesel
3-cylinder
liquid-cooled
Displacement:	80.4 ci 1.3 L
Bore/Stroke:	3.071x3.622 inches 78 x 92 mm
Power:	26 hp 19.4 kW
Compression:	22:1
Rated RPM:	2500
Starter volts:	12

Dimensions
Length:	115 inches 292 cm
Width:	59.4 inches 150 cm
Gear Weight:	2315 lbs 1050 kg
Hydro Weight:	2458 lbs 1114 kg
