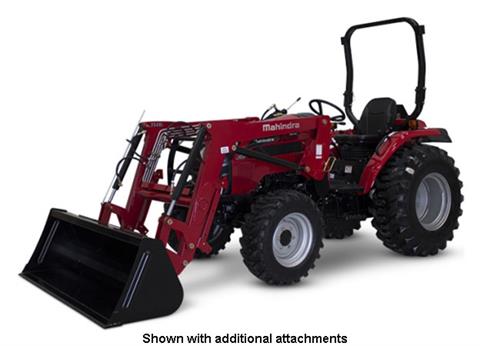

Mahindra 2540

Production: 2016

Production
Distributor:	Mahindra
Manufacturer:	TYM
Type:	Compact Utility tractor
Original price:	$23,220 (2016 )

Mahindra 2540 Power
Engine:	40 hp 29.8 kW
PTO (claimed):	35 hp 26.1 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post foldable ROPS.
Transmission:	12-speed shuttle

Hydraulics
Type:	open center
Rear valves:	1 or 2
Pump flow:	8.2 gpm 31.0 lpm
Steering flow:	4.5 gpm 17.0 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift:	2646 lbs 1200 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)
Engine RPM:	540@2650

Electrical
Charging system:	alternator
Charging amps:	45
Charging volts:	12
Battery volts:	12
Battery AH:	96

Engine Detail
Mahindra
diesel
4-cylinder
liquid-cooled
Displacement:	166.7 ci 2.7 L
Bore/Stroke:	3.50x4.33 inches 89 x 110 mm
Emissions:	Tier IV
Power:	40 hp 29.8 kW
Fuel system:	direct injection
Compression:	19.5:1
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Transmission
Type:	shuttle
Gears:	12 forward and reverse
Clutch:	dry disc

Dimensions
Length:	119.3 inches 303 cm
Width:	59.8 inches 151 cm
Height (ROPS):	94.4 inches 239 cm
Weight:	3285 lbs 1490 kg
