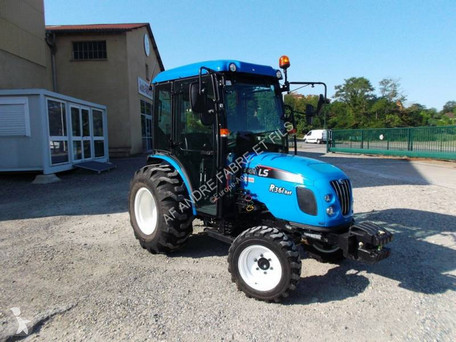

LS Rio R36

Contents:

Production

Manufacturer:LS
Factory:Korea

LS R36 Power

Engine:38.5 hp 28.7 kW

Mechanical

Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:ROPS
Transmission:12-speed

Hydraulics

Valves:0 to 2
Pump flow:8.1 gpm 30.7 lpm
Steering flow:3.6 gpm 13.6 lpm

Tractor hitch

Rear Type:I
Rear lift:2,619 lbs 1187 kg

Power Take-off (PTO)

Rear PTO:independent
Rear RPM:540
Mid PTO:optional

Electrical

Charging amps:50
Battery volts:12

Engine Detail

Mitsubishi S4L2
diesel
4-cylinder
liquid-cooled
Displacement:107.3 ci 1.8 L
Bore/Stroke:3.071x3.622 inches 78 x 92 mm
Power:38.5 hp 28.7 kW
Air cleaner:Dry Dual Element
Rated RPM:2700

Transmission

Transmission:synchro shuttle
Gears:12 forward and reverse

Dimensions

Wheelbase:65.4 inches 166 cm
Length:117.6 inches 298 cm
Height:92.6 inches 235 cm
Weight:2,712 lbs 1230 kg
Ground clearance:13 inches 33 cm
