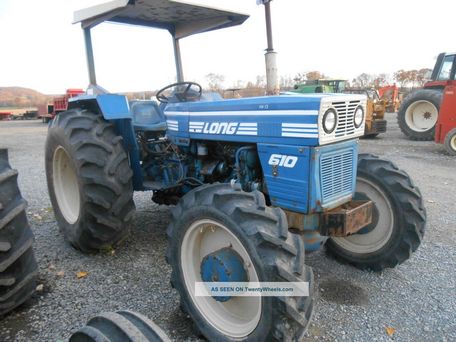

Long 610

Production: 1979 - 1990

Production
Distributor:	Long
Manufacturer:	UTB/Universal
Type:	Utility tractor
Factory:	Brasov, Romania
Some versions of the Long model 610 carried a "Model 1582" designation on the serial number plate.

Long 610 Power
Drawbar (claimed):	57.5 hp 42.9 kW
PTO (claimed):	64.3 hp 47.9 kW
Drawbar (tested):	56.12 hp 41.8 kW
PTO (tested):	64.35 hp 48.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	independent contracting band
Transmission:	8-speed

Capacity
Fuel:	14.3 gal 54.1 L
Hydraulic system:	18 gal 68.1 L

Hydraulics
Type:	open center
Capacity:	18 gal 68.1 L
Valves:	1
Total flow:	5.75 gpm 21.8 lpm

Tractor hitch
Rear Type:	1/2
Rear lift:	2,650 lbs 1202 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
UTB/Universal
diesel
4-cylinder
liquid-cooled
Displacement:	219 ci 3.6 L
Bore/Stroke:	4.02x4.33 inches 102 x 110 mm
Rated RPM:	2400
Starter volts:	12

Transmission
Gears:	8 forward and 2 reverse

Dimensions
Wheelbase:	77 inches 195 cm
Operating weight:	4,695 lbs 2129 kg
Ballasted weight:	8,985 lbs 4075 kg
