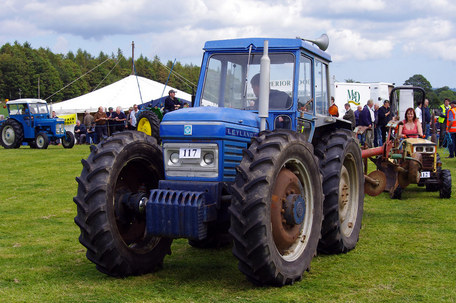

Leyland 470

Production: 1973 - 1976

Production
Manufacturer:	Leyland
Type:	Utility tractor
The Leyland 470 was a 270 with a four-wheel drive system installed by Four Wheel Traction Ltd.

Leyland 470 Power
Engine (net):	70 hp 52.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power assist
Brakes:	mechanical dry disc
Cab:	Safety cab standard.
Transmission:	10-speed gear

Hydraulics
Type:	open center
Pump flow:	7.9 gpm 29.9 lpm

Tractor hitch
Rear Type:	II/I
Control:	position and top-link draft control
Rear lift:	4000 lbs 1814 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540

Electrical
Charging system:	alternator
Charging amps:	34
Battery volts:	12
Battery AH:	128

Engine Detail
Leyland 4/98NT
diesel
4-cylinder
liquid-cooled
Displacement:	230 ci 3.8 L
Bore/Stroke:	3.859x4.921 inches 98 x 125 mm
Fuel system:	direct injection
Air cleaner:	dry
Rated RPM:	2200
Torque:	190 lb-ft 257.6 Nm
Torque RPM:	1300
Starter volts:	12

Transmission
Type:	gear
Gears:	10 forward and 2 reverse
Clutch:	mechanical dry disc
Five gears (1-5) plus reverse (R) in two ranges (low/high).

Dimensions
Wheelbase:	82.5 inches 209 cm
Length:	146.5 inches 372 cm
Height (cab):	96 inches 243 cm
Weight:	7014 lbs 3181 kg
Front tread:	60 to 72 inches 152 to 182 cm
Rear tread:	56 to 80 inches 142 to 203 cm
