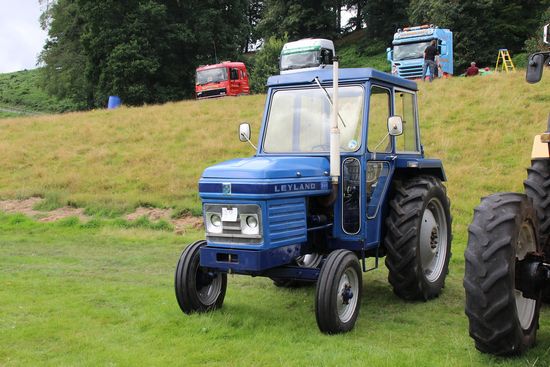

Leyland 245

Production: 1972 - 1984

Production
Manufacturer:	Leyland
Type:	Utility tractor

Leyland 245 Power
Engine (gross):	50 hp 37.3 kW
Engine (net):	48 hp 35.8 kW
PTO (claimed):	42 hp 31.3 kW
Drawbar (tested):	33.06 hp 24.7 kW
PTO (tested):	39.73 hp 29.6 kW

Mechanical
Chassis:	4x2 2WD
Steering:	power assist
Brakes:	independent mechanical dry discs
Cab:	Open operator station. Cab available.
Transmissions:	10-speed gear
9-speed

Capacity
Fuel:	18 gal 68.1 L
Hydraulic system:	14.8 gal 56.0 L

Hydraulics
Type:	open center
Capacity:	14.8 gal 56.0 L
Pressure:	2610 psi 180.0 bar
Pump flow:	7.9 gpm 29.9 lpm

Tractor hitch
Rear Type:	II/I
Rear lift:	4012 lbs 1819 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540
Engine RPM:	540@1813

Engine Detail
Leyland D3.152
diesel
3-cylinder
liquid-cooled
Displacement:	152.7 ci 2.5 L
Bore/Stroke:	3.60x5.00 inches 91 x 127 mm
Power (gross):	50 hp 37.3 kW
Compression:	18.5:1
Rated RPM:	2250
Starter volts:	12
Oil capacity:	7.4 qts 7.0 L

Dimensions
Wheelbase:	74.4 inches 188 cm
Length:	126 inches 320 cm
Width:	63.8 inches 162 cm
Height (steering wheel):	61.8 inches 156 cm
Height (cab):	90.6 inches 230 cm
Ground clearance:	15.7 inches 39 cm
