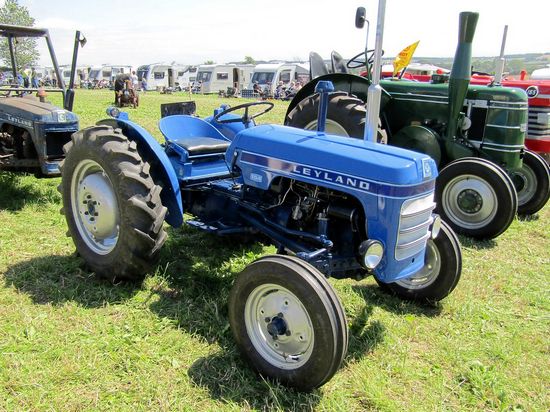

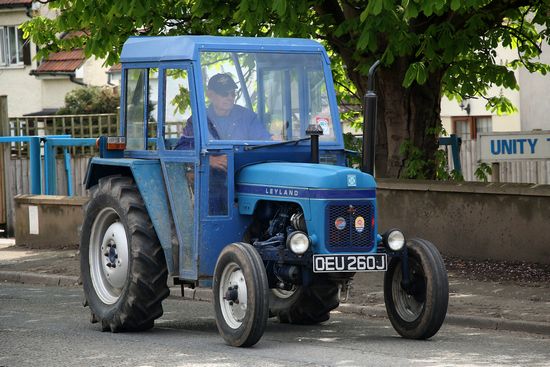

Leyland 154
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Leyland |
| Type: | Utility tractor |
| Original price: | $8,300 (1984 ) |
Leyland 154 Power | |
| Engine: | 28 hp 20.9 kW |
| PTO (claimed): | 24 hp 17.9 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Final drives: | spur gear |
| Differential lock: | mechanical rear |
| Steering: | manual |
| Brakes: | disc |
| Cab: | Open operator station. |
| Transmission: | 9-speed constant mesh |
Hydraulics | |
| Type: | open center |
| Pressure: | 2000 psi 137.9 bar |
| Pump flow: | 3.8 gpm 14.4 lpm |
Tractor hitch | |
| Rear Type: | I |
| Rear lift: | 1000 lbs 453 kg |
Power Take-off (PTO) | |
| Rear RPM: | 540/1000 |
| Engine RPM: | 540@2260 1000@2440 |
Electrical | |
| Charging amps: | 34 |
Engine Detail | |
| BMC 15T | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 91 ci 1.5 L |
| Bore/Stroke: | 2.875x3.5 inches 73 x 89 mm |
| Compression: | 23:1 |
| Rated RPM: | 2500 |
Transmission | |
| Type: | constant mesh |
| Gears: | 9 forward and 3 reverse |
| Clutch: | 241mm dry disc |
| Three gears, plus reverse, in three ranges. | |
Dimensions | |
| Wheelbase: | 67.7 inches 171 cm |
| Length: | 102.4 inches 260 cm |
| Width: | 59.4 inches 150 cm |
| Weight: | 2325 lbs 1054 kg |
| Clearance (front axle): | 21 inches 53 cm |
| Clearance (rear axle): | 19 inches 48 cm |
| Front tread: | 48 to 68 inches 121 to 172 cm |
| Rear tread: | 44 to 72 inches 111 to 182 cm |
