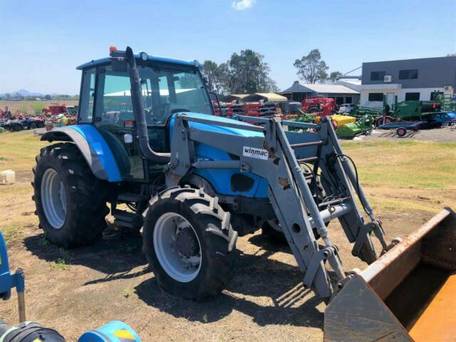

Landini Vision 85

Contents:

Production

Manufacturer:Landini

Landini Vision 85 Power

Engine:81 hp 60.4 kW
PTO (claimed):74 hp 55.2 kW

Mechanical

Chassis:4x4 MFWD 4WD
Transmissions:15-speed
30-speed
40-speed

Capacity

Fuel:32 gal 121.1 L
Hydraulic system:14.75 gal 55.8 L

Hydraulics

Capacity:14.75 gal 55.8 L
Valves:3
5 optional
Pump flow:14.2 gpm 53.7 lpm
Total flow:22.5 gpm 85.2 lpm

Tractor hitch

Rear lift:5,720 lbs 2594 kg
8,140 lbs 3692 kg optional

Power Take-off (PTO)

Rear RPM:540/1000

Engine Detail

Perkins 1104-44
diesel
4-cylinder
Displacement:268 ci 4.4 L
Power:81 hp 60.4 kW
Torque:215 lb-ft 291.5 Nm

Dimensions

Wheelbase:93.5 inches 237 cm
Length:174 inches 441 cm
Width:73 inches 185 cm
Height:103.5 inches 262 cm
Weight:8,954 lbs 4061 kg
Ground clearance:16.5 inches 41 cm
