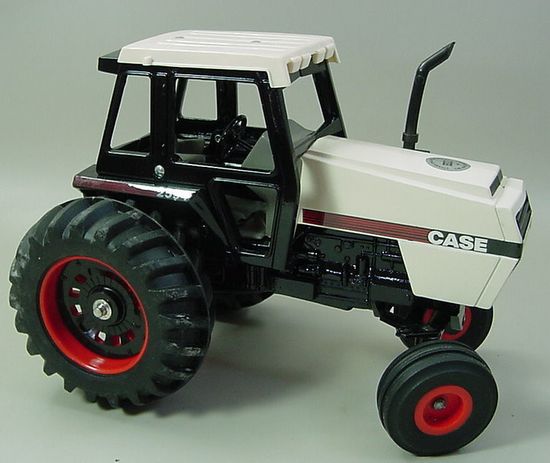

Case 2594

Production: 1984

Production
Manufacturer:	J.I. Case
Type:	Row-Crop tractor
Factory:	Racine, Wisconsin, USA

J.I. Case 2594 Power
Engine:	217 hp 161.8 kW
Drawbar (claimed):	161 hp 120.1 kW
PTO (claimed):	180 hp 134.2 kW
Drawbar (tested):	159.64 hp 119.0 kW
PTO (tested):	182.07 hp 135.8 kW

Mechanical
Chassis:	4x2 2WD
Steering:	power
Brakes:	wet disc
Cab:	Silent Guardian cab with air-conditioning.
Transmissions:	12-speed three-speed power shift
24-speed four-speed power shift

Capacity
Fuel:	85 gal 321.7 L
25 gal 94.6 L (optional auxiliary tank)
Hydraulic system:	32 gal 121.1 L

Hydraulics
Type:	closed center
Capacity:	32 gal 121.1 L
Pressure:	2250 psi 155.1 bar
Valves:	2 to 4
Pump flow:	27 gpm 102.2 lpm
Steering flow:	8 gpm 30.3 lpm
Steering press.:	2000 psi 137.9 bar

Tractor hitch
Rear Type:	III
Rear lift (at 24"/610mm):	7,750 lbs 3515 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	hydraulic
Rear RPM:	1000

2594 Serial Numbers
Location:	Inside cab or on right-front frame
1984:	9931803
1985:	9938951
1986:	9941789
1987:	9945455
1988:	9948517

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	72
105*Optional
Battery volts:	12

Engine Detail
Case
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	504 ci 8.3 L
Bore/Stroke:	4.625x5.00 inches 117 x 127 mm
Power:	217 hp 161.8 kW
Rated RPM:	2100
Starter volts:	12
Oil capacity:	30 qts 28.4 L
Coolant capacity:	44 qts 41.6 L

Dimensions
Wheelbase:	118 inches 299 cm
Width:	96 inches 243 cm
120 inches 304 cm (optional axle)
