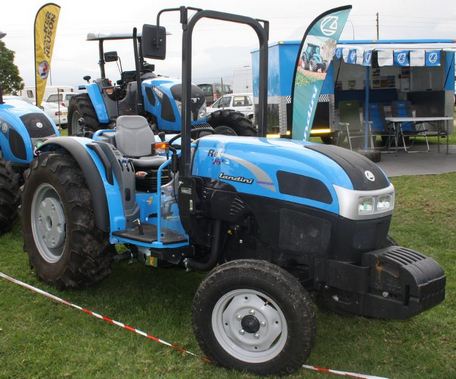

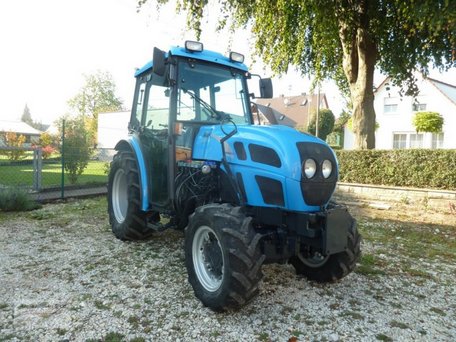

Landini Rex 75

Production: 2006 - 2009

Production
Manufacturer:	Landini (a part of Argo)
Type:	Orchard/Vineyard tractor

Landini Rex 75 Power
Engine:	68.2 hp 50.9 kW
PTO (claimed):	63 hp 47.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	hydraulic wet disc
Trailer brakes:	hydraulic*Optional
Cab:	Two-post mid-mount ROPS. Cab optional with available air-conditioning.
Transmissions:	15-speed mechanical shuttle
20-speed power shuttle

Hydraulics
Pressure:	2600 psi 179.3 bar
Valves:	2
Pump flow:	13.8 gpm 52.2 lpm
Total flow:	21.6 gpm 81.8 lpm
Steering flow:	7.8 gpm 29.5 lpm

Tractor hitch
Rear Type:	II
Control:	position and draft control
Rear lift:	5700 lbs 2585 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	mechanical dry disc
electro-hydraulic wet disc*With Power Five transmission.
Rear RPM:	540/750 (1.375)
540
1000 (1.375)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Perkins 1104C-44
diesel
4-cylinder
liquid-cooled
Displacement:	268.5 ci 4.4 L
Bore/Stroke:	4.135x5.00 inches 105 x 127 mm
Emissions:	Stage II
Power:	68.2 hp 50.9 kW
Fuel system:	direct injection
Compression:	19.3:1
Rated RPM:	2200
Torque:	201 lb-ft 272.6 Nm
Torque RPM:	1400

Dimensions
2WD Wheelbase:	85.6 inches 217 cm
4WD Wheelbase:	84 inches 213 cm
Length:	157.8 inches 400 cm
Width:	51.9 inches 131 cm
Height (steering wheel):	57 inches 144 cm
Height (cab):	88.6 inches 225 cm
2WD Weight:	5753 lbs 2609 kg
4WD Weight:	6259 lbs 2839 kg
Ground clearance:	15 inches 38 cm
Front tread:	53.8 to 57.8 inches 136 to 146 cm
Rear tread:	34.2 to 55.5 inches 86 to 140 cm
