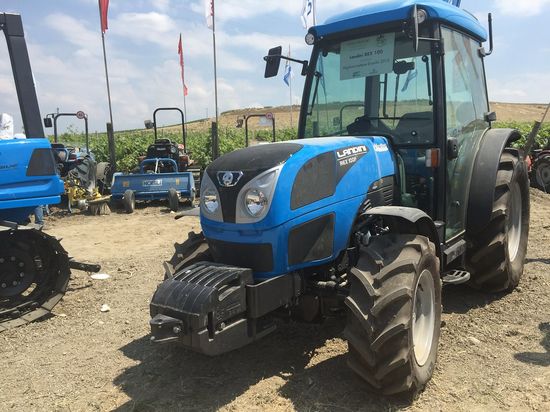

Landini Rex 100

Production: 2001 - 2005

Production
Manufacturer:	Landini (a part of Argo)
Type:	Orchard/Vineyard tractor

Variants
Rex 100F:	narrow orchard
Rex 100GT:	wide orchard

Landini Rex 100 Power
Engine:	95 hp 70.8 kW
PTO (claimed):	86 hp 64.1 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Final drives:	electro-hydraulic front and rear
Steering:	power
Brakes:	wet disc
Cab:	Two-post foldable mid-mount ROPS. Cab optional.
Transmissions:	12-speed
40-speed

Hydraulics
F Valves:	2
GT Valves:	3
Pump flow:	14.2 gpm 53.7 lpm
Total flow:	19.2 gpm 72.7 lpm
22.4 gpm 84.8 lpm *With Deltashift transmission.
Steering flow:	5 gpm 18.9 lpm
8.1 gpm 30.7 lpm *With Deltashift transmission.

Tractor hitch
Rear Type:	II
Rear lift:	5732 lbs 2600 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540/750
540/1000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Perkins 1004-40T
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	243.5 ci 4.0 L
Bore/Stroke:	3.937x5.00 inches 100 x 127 mm
Power:	95 hp 70.8 kW
Fuel system:	direct injection
Compression:	17.25:1
Rated RPM:	2200
Torque:	285.4 lb-ft 387.0 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	84 inches 213 cm
Length:	140.6 inches 357 cm
F Width:	55.5 inches 140 cm
GT Width:	61.8 inches 156 cm
Height (cab):	88.6 inches 225 cm
F Weight:	6173 lbs 2800 kg
GT Weight:	6393 lbs 2899 kg
Ground clearance:	15 inches 38 cm
