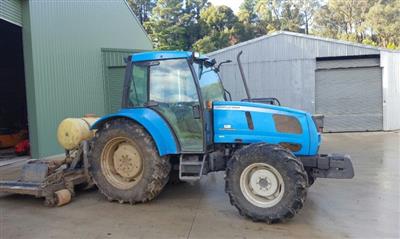

Landini Globus 80
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Landini |
| Type: | Utility tractor |
Variants | |
| Globus 80 GT: | low-profile |
Landini Globus 80 Power | |
| Engine: | 80 hp 59.7 kW |
| PTO (claimed): | 66 hp 49.2 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Differential lock: | mechanical |
| Steering: | hydrostatic power |
| Brakes: | hydraulic wet disc |
| Trailer brakes: | hydraulic optional |
| Cab: | Cab with heater standard. Optional air-conditioning and digital dashboard. Optional ROPS canopy. |
| Transmissions: | 15-speed synchronized shuttle |
| 30-speed synchronized shuttle | |
| 30-speed partial power shift | |
| 60-speed partial power shift | |
Hydraulics | |
| Pressure: | 2600 psi 179.3 bar |
| Valves: | 2 or 3 |
| SCV flow: | 14.2 gpm 53.7 lpm |
| Total flow: | 22.2 gpm 84.0 lpm |
Tractor hitch | |
| Rear Type: | 2 |
| Control: | position and draft control |
| Rear lift: | 4,600 lbs 2086 kg |
| 7,500 lbs 3402 kg (optional) | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic wet disc |
| Rear RPM: | 540/1000/ground |
| 540/750/ground | |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| Perkins 1004-42 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 258 ci 4.2 L |
| Bore/Stroke: | 4.055x5.00 inches 103 x 127 mm |
| Power: | 80 hp 59.7 kW |
| Rated RPM: | 2200 |
| Starter volts: | 12 |
Dimensions | |
| 4WD Wheelbase: | 85 inches 215 cm |
| GT Wheelbase: | 85.3 inches 216 cm |
| 4WD Length: | 158 inches 401 cm |
| GT Length: | 157 inches 398 cm |
| 4WD Width: | 78 inches 198 cm |
| GT Width: | 72 inches 182 cm |
| 4WD Height (cab): | 95.5 inches 242 cm |
| GT Height (cab): | 91 inches 231 cm |
| 4WD Ground clearance: | 15.6 inches 39 cm |
| GT Ground clearance: | 15.2 inches 38 cm |
| 4WD Front tread: | 62.5 to 73 inches 158 to 185 cm |
| GT Front tread: | 54.5 to 64.5 inches 138 to 163 cm |
| 4WD Rear tread: | 61 to 77 inches 154 to 195 cm |
| GT Rear tread: | 53.5 to 73 inches 135 to 185 cm |
