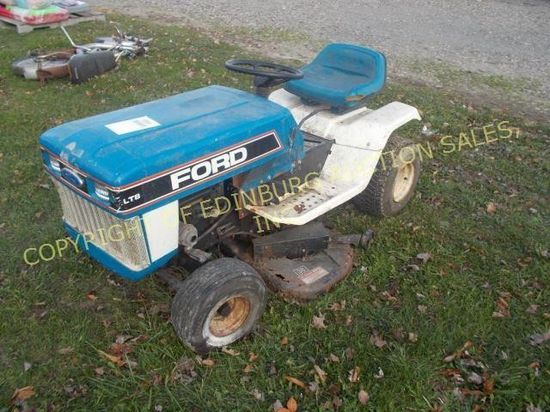

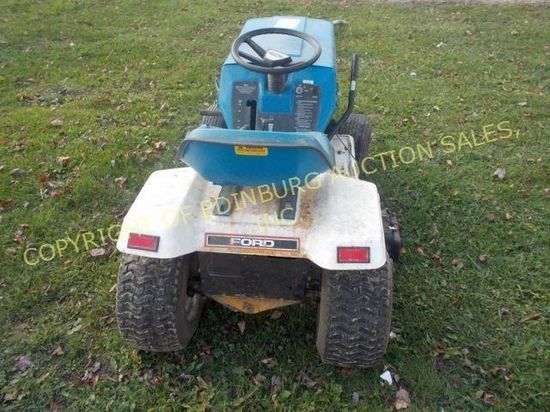

Ford LT-8

Production: 1984 - 1987

Production
Distributor:	Ford
Manufacturer:	Gilson
Type:	Lawn tractor

Mechanical
Chassis:	4x2 2WD
Steering:	manual pinion and sector
Brakes:	caliper disc on transaxle
Cab:	Open operator station. Optional vinyl soft cab.
Transmission:	3-speed gear

Capacity
Fuel:	1 gal 3.8 L

Electrical
Ground:	negative

Engine Detail
Briggs & Stratton 190000
gasoline
1-cylinder
air-cooled
Displacement:	318 cc 19.44 ci
Bore/Stroke:	3.00x2.75 inches 76 x 70 mm
Power:	8 hp 6.0 kW
Air cleaner:	dry
Starter volts:	12
Oil capacity:	1.125 qts 1.1 L

Transmission
Type:	gear
Gears:	3 forward and 1 reverse
Oil capacity:	1.1 qts 1.0 L

Dimensions
Wheelbase:	49 inches 124 cm
Length:	68.5 inches 173 cm
Width:	47.3 inches 120 cm
Height (steering wheel):	35.7 inches 90 cm
Shipping:	480 lbs 217 kg *Weight with 38 inch mower deck.
Ground clearance:	5.7 inches 14 cm (transmission)
Clearance (front axle):	7 inches 17 cm
